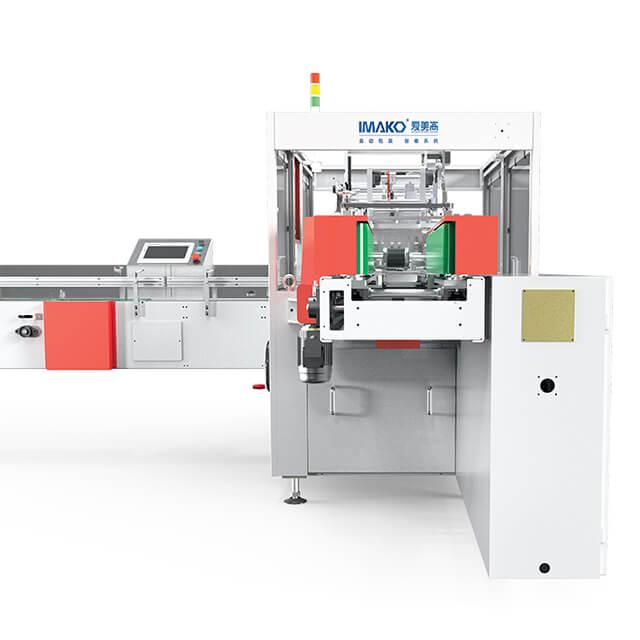

Full Servo Tissue Packaging Machine For Singe Pack TP-T180

Price: Negotiable
Model Number: TP-T180
Power: 12KW,380V/50Hz
Application: Single Tissue Wrapping
Weight: 3000KG
Output: 100Pack/min
Packaging dimension: Length (L): 95-210 Width (W): 80-115 Height (H): 30-100
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

TP-180 single tissue Packaging machine main feature:

1) Wide Range Use

TP-180 single tissue Packing machine is suitable for automatically single packing soft drawn facial tissue, kitchen paper, V fold hand towel paper and napkin.

2) Control System

This machine adopts inverter for controlling tissue arrangement and feeding. Film perforation, film pulling and positioning, film cut off and center sending are controlled by servo motors.

3) Standard Functions

Tissue arrangement and forming, feeding speed detect and adjustment, avoid double pack feeding, pusher overload protection,tissue error detection, film volume detection, film releasing detection, paper hook forming, jog operation, link operation.

4) Advantages

Complete operation functions, high efficiency, easy to operate, wide specification range, quick size change over, convenient maintenance,low cost for using etc.


Tissue Packaging Machine Specification

Max.Work Speed

100Pack/min

Total Power

12KW

Pack Range(mm)

Length (L): 95-210

Width (W): 80-115(Extension150)

Height (H): 30-100(Exceeded size can be customized)

Tissue sorting mode

Auto intelligent tissue sorting

4 sections intelligent soft tissue feeding mode

Design speed

110packs/min

relate to product size

Stable speed

100packs/min

relate to product size

Size mould

3sets

Product sizes are

provide by buyer

Machine weight(KG)

3000

Packaging material

CPP, PE film

Film thickness(mm)

0.035-0.05

Max. film roll dia(mm)

500

Film core dia.(mm)

76

international standard

Max. film roll width(mm)

340

Compressed air(MPA)

Air source:≥0.5

Buyer prepare

Power supply

380V/50Hz

According to

national standard

Adaptive voltage change

0.9

According to

national standard

I/O input(VDC)

24

Electricity control system

control loop input

I/O output(VDC)

24

Electricity control system

control loop output

Movement control mode

3 servo shafts

Electronic CAM

positioning control

movement curve

Main transmission mode

20 crmnti mechanical cam +electrical cam

Color and craft

Grey, static spray paint craft

Packing style

3D wrapping

Even heat sealing on film overlap parts

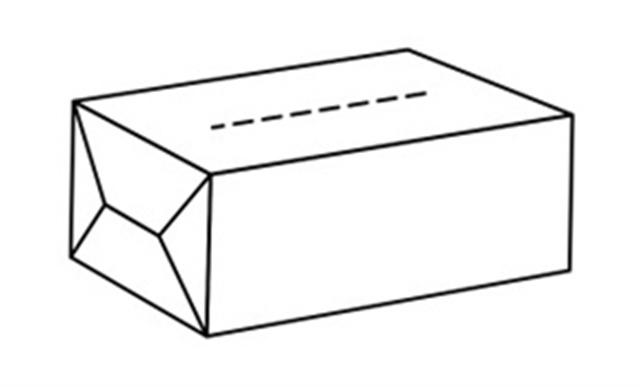

Perforation option

Straight line perforation

Alternative

Perforation option

Oval shape perforation

Alternative

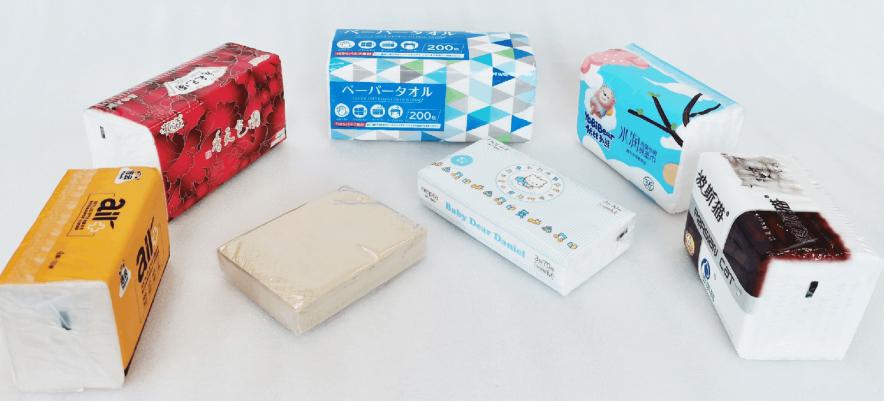

facial tissue single packing

Application of automatic facial tissue single pack machine.

Automatic Facial Tissue Single Packing Machine is specialized type of packaging machine which can pack facial tissue, V fold hand towel paper and napkin.

Advantages of automatic facial tissue single pack machine.



1、Simple operation, safe and reliable.



2、Saving labor cost and improving production efficiency.



3、reliable packaging quality, to ensure product quality



4、Alarm function to improve packaging efficiency.



With the promotion and application of Kleenex single pack machine, baby care, women's skin care use of wipe paper can also be packaged with tissue single packing machine, in order to respond to the trend of consumers pay more and more attention and concern about the quality of household paper products.

Standard functions: tissue arrangement and forming, feeding speed detect and adjustment, avoid double pack feeding, pusher overload protection,tissue error detection, film volume detection, film releasing detection, paper hook forming, jog operation, link operation.

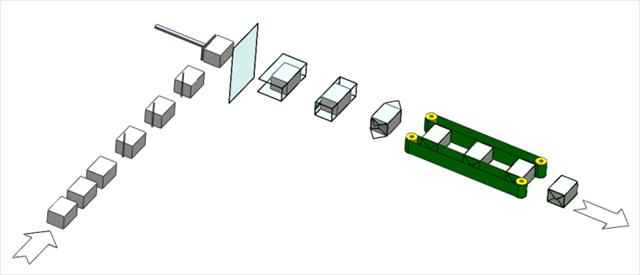

TP-T180流程图1 .png

Full Servo Tissue Packaging Machine For Singe Pack TP-T180Main Parts

1. Speed Reducer

The speed reducer is typically located between the electric motor and the gearbox, and it works by reducing the rotational speed of the motor while increasing the torque. This allows the machine to operate at a slower speed, which is necessary for the efficient movement of the rollers and other components.

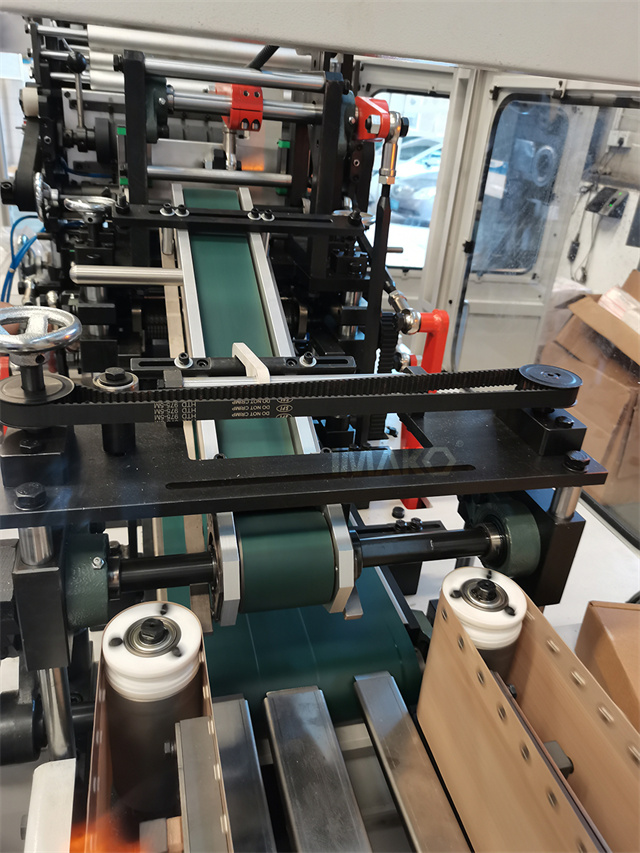

2. Conveying line

The Frequency conversion motor drives the conveyor belt to feed material, with photoelectric eye automatic counting function, cam-controlled push and pallet mechanism, automatic feeding blocking protection function, automatic alarm function.

3. Sealer

The sealer typically consists of a heating element, a sealing bar, and a pressure mechanism, which work together to create a strong and secure seal on the package. The sealer is an essential component of the sanitary packaging process.
