TP-C20 Tissue Paper Towel Carton Packing Machine Case Packer

Price: Negotiable
Model Number: TP-C10
Power: 12KW
Application: Facial Tissue,Napkin,V fold Hand Towel Paper
Weight: 4000kg
Output: 10 cartons/min
Packaging dimension: Length (L): 150-240 Width (W): 230-450 Height (H): 270-450 mm
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

★ This machine adopts PLC and 3 shafts servo movement controller for controlling unit, realize servo controlling for paper feeding, distribution, arrangement, catch and carton open, filling, sealing.

★ This machine realizes auto stacking and carton packing single packed big size tissue paper.

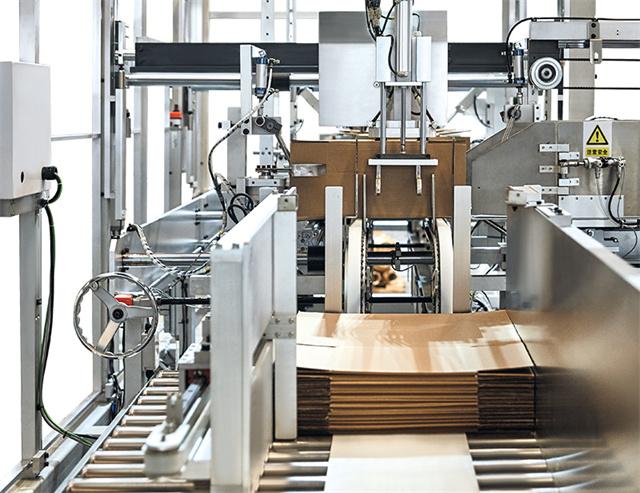

★ Adopt standard carton open and sealing unit, easy to operate and change sizes.

★ HIM interface, parameters can be set on touch screen directly, easy to operate.

TP-C20 main parameter configuration

Scope of application

Single film pack big size tissue

Feedling mode

Auto intelligent single lane feeding system

Feeding speed

Maximum feeding speed is 120 bags/min

Single pack paper size

L200mm/W170mm/H80mm,Single pack size tolerance

5mm single pack sze has to in machine range

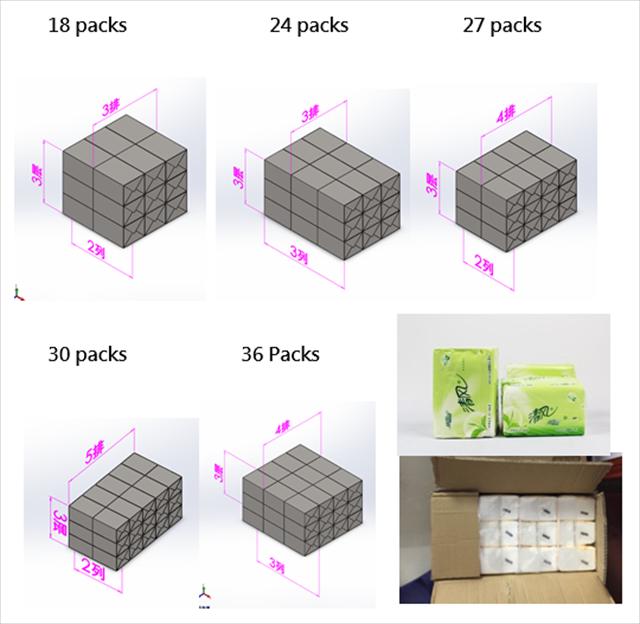

Paper array

(Layer x Row x Column)

See drawing

Design speed

10 cartons/min

Relate to product size

Stable speed

7 cartons/min

Percent of pass

ln standard size range

Carton structure

3-ply corrugated paper,

thickness 5mm

simple carton,need to punch

the foldng mark in advance

Carton placing mode

Side vertical single storage position

Carton storage nos

100 cartons

Single working position

Sealing mode

Tape sealer

Machine weight(KG)

4000

Compressed air(MAP)

≥0.6

Buyer prepare

Power supply

380V/50HZ

Suit voltage

fluctuate range

+/-10%

According to

national standard

I/O input(VDC)

24

Electrical system

controls circle input

I/O output(VDC)

24

Electrical system

controls circle output

Machine movement

control mode

Servo/inverterlcylinder

positioning control






★ Fault self-diagnosis and alarm, can find out the faults and it’s position quality and will auto display on the touch, easy for trouble shouting and machine maintenance.

★ Monitoring system: Detect both bags and paper to avid machine running without bag or without product.

★ Adopts tapes for auto sealing carton, firm and nice seal. Stably in running.

★ Adopts servo system for intelligently material feeding, wide size application.

★ Equipped with air source management, fault alarm and display, servo overload protection.

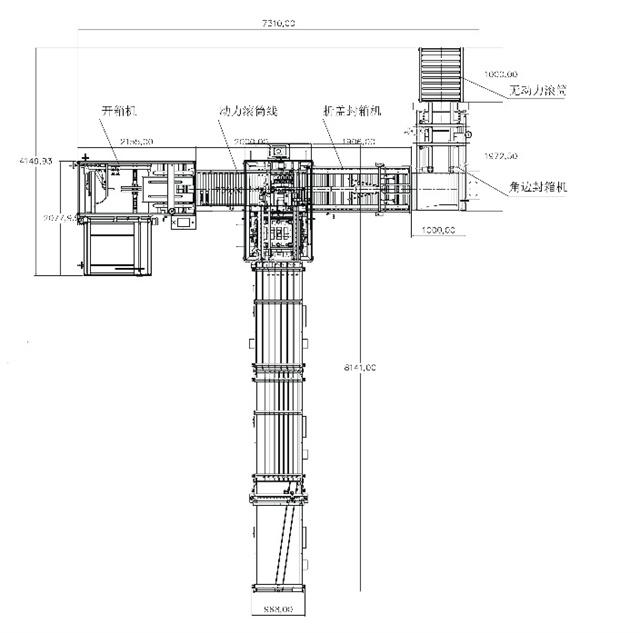

TP-C10 6.jpg
TP-C20 Tissue Paper Towel Carton Packing Machine Case PackerMain Parts

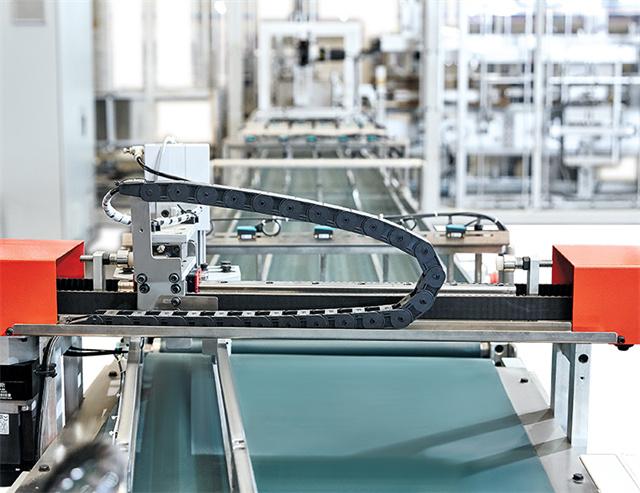

1. Conveyor lines

Conveyor lines typically consist of a series of rollers, belts, or chains that move products from one point to another. They can be designed to handle products in various shapes and sizes, and can be customized to meet specific requirements of the packaging process.

2. Bag-making parts

The machine uses a die cutter or other mechanism to cut the bag material into the desired shape and size. The formed bags are then transferred to a conveyor belt for further processing.

3. Pushboard

The pushboard in a diaper packaging machine is a critical component that helps to control the movement of the filled diaper bags as they move through the packaging process. The pushboard is typically mounted on the front of the machine, and is designed to guide the bags into position as they are sealed and cut.
