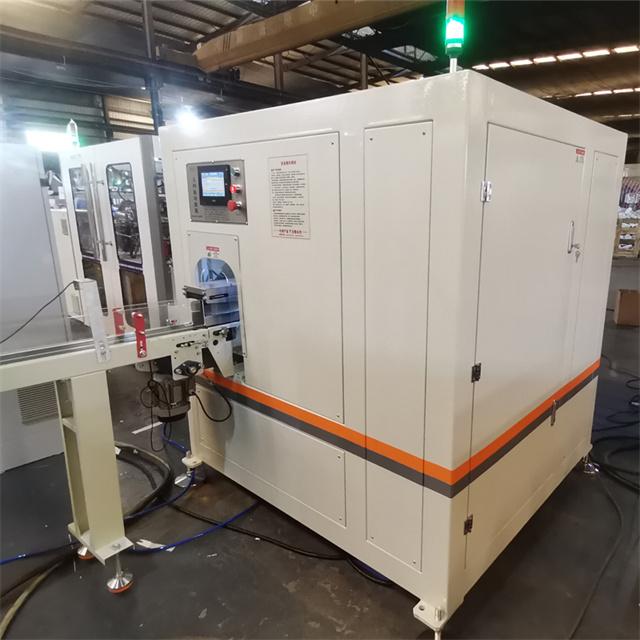

TC-280 Tissue Paper Towel Cutting Machine

Price: Negotiable
Model Number: TC-280
Power: 6.6KW

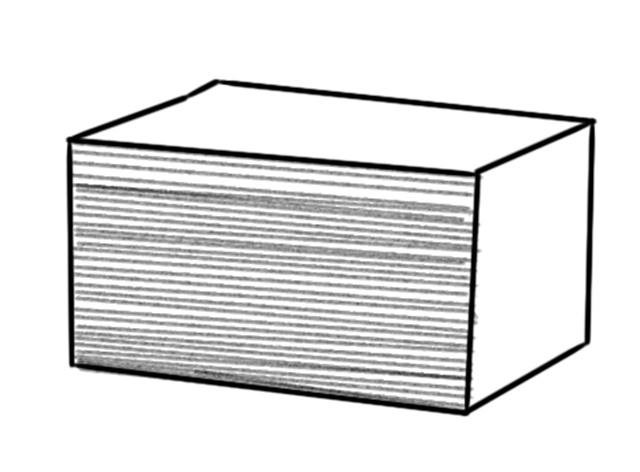

Application: Facial Tissue,Napkin,V fold Hand Towel Paper
Weight: 1500KG
Output: 280 cuts/min
Packaging dimension: Length:90-210mm Width:80-110mm Height:25-100mm
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+8613178861492

TC-280 main parameter configuration
Control system	PLC program control、Servo drive、Touch screen operation		Outer diameter of blade (mm)	Φ610mm(min.Φ400mm)
Feeding mode	servo drive, Synchronous positioning transmission by synchronous belt		Compressed air (mpa)	0.5Mpa(provided by buyer)
Cutting mode	360° rotating and cut off continuously		Power Supply	380V/50Hz
Excision of roll paper head and end system	PLC system control,operating in touch screen	The length of paper head and end:15mm-25mm	Total power (KW)	6.6KW
Cutting precision	Cut off error <1mm		Machine size(mm)	L1500×W1500×H1700
Knife grinding system	Automatic knife grinding ,setting parameters in touch screen		Machine weight(KG)	1500

Products Categories

Related Products

More》

Tissue cutting machine Tissue Cutter Towel Tissue Cutting Machine

TC-280 Tissue Paper Towel Cutting MachineMain Parts

1. Pushboard

Name: TC-280 Tissue Paper Towel Cutting Machine
Brand: IMAKO

The pushboard in a diaper packaging machine is a critical component that helps to control the movement of the filled diaper bags as they move through the packaging process. The pushboard is typically mounted on the front of the machine, and is designed to guide the bags into position as they are sealed and cut.

2. Bag-making parts

The machine uses a die cutter or other mechanism to cut the bag material into the desired shape and size. The formed bags are then transferred to a conveyor belt for further processing.

3. The Film Frame

The Film Frame is also designed to be adjustable, which allows for different sizes and shapes of film to be used as needed. This is important for ensuring that the film fits snugly around Kitchen paper rolls and provides a secure and tamper-proof package.In addition to supporting the film, it also helps to ensure that the film is properly aligned with the rollers and other components of the machine.
