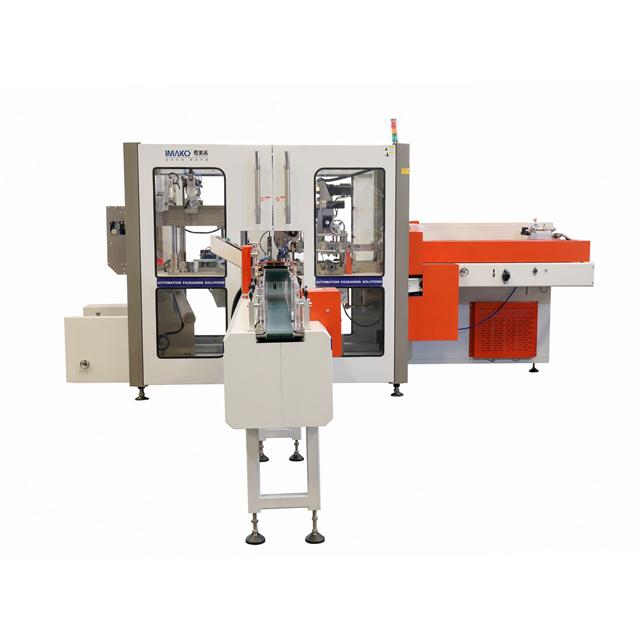

TP-T450 Full Servo High Speed Tissue Paper Soft Draw Single Wrapping Machine

Price: Negotiable
Model Number: TP-T450
Power: 12.42
Application: Facial Tissue,V Fold Wipes, Napkins, Non-Woven Fabric, Dust-Free Paper
Weight: 3000
Output: 180 Packs/Min
Packaging dimension: L(95~210) /W(80~100) /H(30~100)
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote


★ This machine can run in high speed stably with low noise, it has the advantages of simple operation, wide range of packaging, quick specification conversion, convenient maintenance, low cost,etc.



TP-T450 main parameter configuration

Scope of application

Facial tissue, V fold wipes, napkins, Non-woven fabric, dust-free paper

Power supply

380V/50Hz

Feeding mode

ASF multi - stage intelligent feeding system

Total power (KW)

12.42

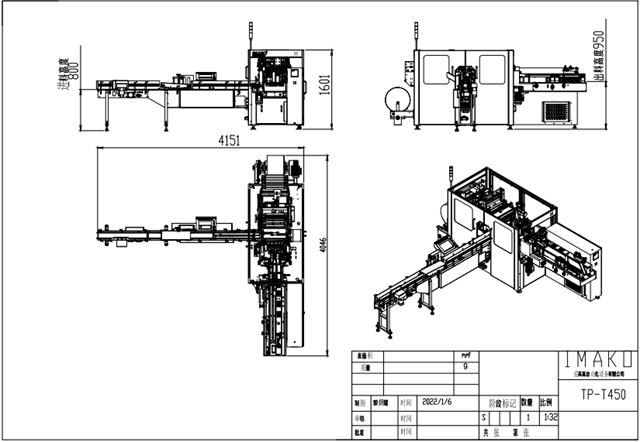

Machine size(mm)

L4150*W4046*H1600

Machine noise (dB)

≤85

Machine weigh(KG)

3000

Perforation option

Straight line /Oval shape form

Alternative

Film thickness (mm)

0.04-0.05

Packaging material

CPPPE&Complex film

Film roll Max. range(mm)

Diameter:≤500Width:340

Movement control mode

16 servo shafts

positioning control

Compressed air (mpa)

Air source≥0.5

Special configuration

Three shaping function unitsElectronic handwheel adjustment Unit (All units can operate independently)

Features
The tissue paper packing machine is designed with several features that make it an idealchoice for packaging tissue paper products. Some of the key features include:1. High-speed packaging: The tissue paper packing machine is designed to operate at highspeeds, making itpossible to pack a large number of tissue paper products in a short amountof time.
2. Automatic operation: The machine is designed to operate automatically, with minimal humanintervention required. This ensures that the packaging process is efficient, accurate, andconsistent.
3. User-friendlyinterface: The machine is designed with a user-friendly interface, making it easyto operate and maintain.
4. Durable construction: The machine is constructed using high-quality materials that ensure its durability and longevity.
5. Customizable: The tissue paper packing machine can be customized to meet the specificpackaging requirements of different tissue paper products.Uses
The tissue paper packing machine can be used for a wide range of applications in variousindustries, including:
1. Paper industry: The machine can be used for packaging tissue paper products in the paperindustry.
2. Food industry: The machine can be used for packaging paper towels and other tissue paperproducts used in the food industry.
3. Healthcare industry: The machine can be used for packaging facial tissues and toilet rollsused in the healthcare industry.


Functionality
The tissue paper packing machine is designed to ensure efficient and accurate packaging oftissue paper products. The machine functions by:
1. Loading the tissue paper products onto the machine.
2. Wrapping the tissue paper products in film or paper.
3. Sealing the packaging using heat or adhesive.
4. Printing labels or branding information on the packaging5. Dispatching the packaged tissue paper.



TP-T450 multi servo high spped facial tissue single wrapping machine is suitable for automatically packing facial tissue paper, V fold wipes, napkins or similar Non-woven fabric, dust-free paper by plastic film three-dimensional wrapping.



facial tissue.jpg




Standard functions:

Electronic handwheel adjustment, tissue hook forming, bag shaping, slapping shaping;

Automatic speed adjustment and paper towel incoming flow detection, paper towel height, length detection, alarm stop function;

Torque overload protection;

The main push rod, board seeding and movable edge guide are equipped with cylinder overload protection function.

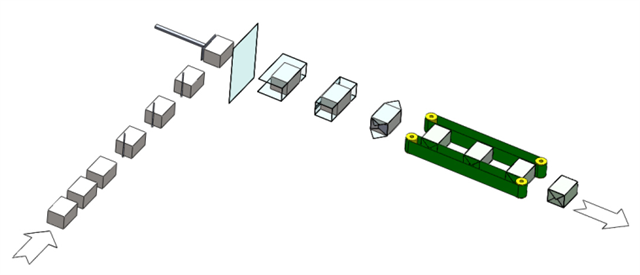

TP-T180流程图1 .png

TP-T450 Full Servo High Speed Tissue Paper Soft Draw Single Wrapping MachineMain Parts

1. Electric cabinet

It is typically made of a durable, high-quality material that can withstand the rigors of daily use and the high-speed movement of the packaging machine. It is designed to be easily accessible for maintenance and repairs, and is typically equipped with doors or panels that can be easily removed for access to the internal components.

2. Sealing part

Up and down temperature individual controlling,suitable for different packaging materials.

3. Machine Base

The structure of the base determines the stability of the whole machine .
Related Cases Your Professional TP-T450 Full Servo High Speed Tissue Paper Soft Draw Single Wrapping Machine Supplier in China.
we from factory environment construction to equipment configuration support our production, all leading to high quality products.

Customer Reviews



Score
 Remove

Review Title

Review Text

   The tissues machine is incredibly efficient


Ella  2024-06-06

tissues machine has greatly improved our production process. It's a game-changer for our business.
   the Tissues Packing Machine


Chloe  2024-06-06

We couldn't be happier with the Tissues Packing Machine. It's reliable, easy to use, and has increased our output significantly.
   tissues machine


Riley  2024-06-06

This machine has exceeded our expectations. The quality of the packaging is top-notch, and it has helped us save time and resources.
   The Tissues Packing Machine is a valuable addition to our facility.


Isabella  2024-06-06

It's user-friendly and has boosted our productivity.
   It's a robust, well-designed piece of equipment.


Leah  2024-06-06

Our experience with the Tissues Packing Machine has been outstanding.
