TP-T180 valmet tissue machine

Price: Negotiable
Model Number: TP-T180
Power: 12KW,380V/50Hz
Application: Single Tissue Wrapping
Weight: 3000KG
Output: 100Pack/min
Packaging dimension: Length (L): 95-210 Width (W): 80-115 Height (H): 30-100
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Tissue Packaging Machine Specification

Max.Work Speed

100Pack/min

Total Power

12KW

Pack Range(mm)

Length (L): 95-210

Width (W): 80-115(Extension150)

Height (H): 30-100(Exceeded size can be customized)

Tissue sorting mode

Auto intelligent tissue sorting

4 sections intelligent soft tissue feeding mode

Design speed

110packs/min

relate to product size

Stable speed

100packs/min

relate to product size

Size mould

3sets

Product sizes are

provide by buyer

Machine weight(KG)

3000

Packaging material

CPP, PE film

Film thickness(mm)

0.035-0.05

Max. film roll dia(mm)

500

Film core dia.(mm)

76

international standard

Max. film roll width(mm)

340

Compressed air(MPA)

Air source:≥0.5

Buyer prepare

Power supply

380V/50Hz

According to

national standard

Adaptive voltage change

0.9

According to

national standard

I/O input(VDC)

24

Electricity control system

control loop input

I/O output(VDC)

24

Electricity control system

control loop output

Movement control mode

3 servo shafts

Electronic CAM

positioning control

movement curve

Main transmission mode

20 crmnti mechanical cam +electrical cam

Color and craft

Grey, static spray paint craft

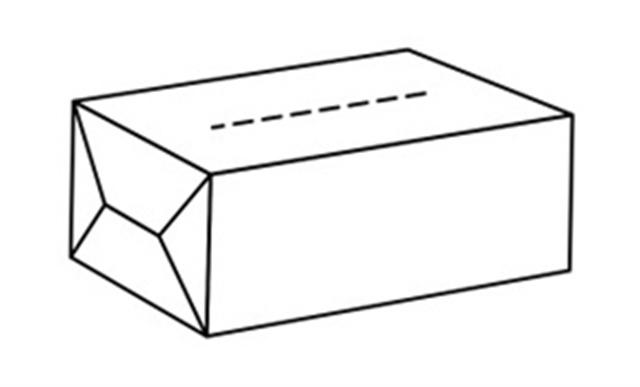

Packing style

3D wrapping

Even heat sealing on film overlap parts

Perforation option

Straight line perforation

Alternative

Perforation option

Oval shape perforation

Alternative

Introduction

Tissue paper has become such an essential element in our daily routine that we don't even have to think about its significance. We use it for personal hygiene, cleaning, and even as a small napkin while eating. With the evolution of technology, the demand for tissue paper has also increased. As a result, tissue machine manufacturers are challenged to create a product that can meet the growing demand while improving overall efficiency. The Valmet Tissue Machine is one such innovation that has revolutionized the tissue paper industry.

The Valmet Tissue Machine: What is it?

The Valmet Tissue Machine is a state-of-the-art machine introduced by Valmet Corporation that produces premium quality tissue paper. The machine is equipped with advanced features such as flexibility, modular design, energy-saving capabilities, and innovative controls. The modular design of the machine ensures a high level of customization, allowing customers to select the essential components based on their specific requirements. The Valmet Tissue Machine is available in various models, each designed to meet the unique needs of customers.

The Benefits of Using Valmet Tissue Machine

The Valmet Tissue Machine offers several advantages that have helped it to gain vast popularity in the market. Here are some of the benefits of using the machine:

  • Efficiency: The Valmet Tissue Machine is highly efficient and produces large quantities of tissue paper while utilizing minimal resources.
  • Flexibility: The machine's modular design allows customers to customize the machine, ensuring optimal performance and output.
  • Energy-saving: The machine is equipped with innovative energy-saving features such as a turbo blower and mist collection system that reduce energy consumption while maintaining efficiency.
  • High-quality: The Valmet Tissue Machine produces tissue paper of exceptional quality, ensuring customer satisfaction and loyalty.

Conclusion

The Valmet Tissue Machine is a revolutionary innovation that has transformed the tissue paper industry. With its flexibility, efficiency, energy-saving capabilities, and high-quality output, the machine offers numerous benefits to customers and ensures optimal performance and output. As the demand for tissue paper continues to grow, the Valmet Tissue Machine remains a reliable and innovative solution for manufacturers striving to meet customer expectations.

tissue single packing

Application of automatic facial tissue single pack machine.

Automatic Facial Tissue Single Packing Machine is specialized type of packaging machine which can pack facial tissue, V fold hand towel paper and napkin.

Advantages of automatic facial tissue single pack machine.



1、Simple operation, safe and reliable.



2、Saving labor cost and improving production efficiency.



3、reliable packaging quality, to ensure product quality



4、Alarm function to improve packaging efficiency.



With the promotion and application of Kleenex single pack machine, baby care, women's skin care use of wipe paper can also be packaged with tissue single packing machine, in order to respond to the trend of consumers pay more and more attention and concern about the quality of household paper products.

Standard functions: tissue arrangement and forming, feeding speed detect and adjustment, avoid double pack feeding, pusher overload protection,tissue error detection, film volume detection, film releasing detection, paper hook forming, jog operation, link operation.


TP-T180流程图1 .png

TP-T180 valmet tissue machineMain Parts

1. Insertion of corners

Insertion of corners refers to the process of folding and securing the corners of the diaper package to create a secure and stable package. The corners are typically folded inward and then sealed to prevent the contents from spilling out or being damaged during storage and transportation.

2. Sealer

The sealer typically consists of a heating element, a sealing bar, and a pressure mechanism, which work together to create a strong and secure seal on the package. The sealer is an essential component of the sanitary packaging process.

3. Pushboard

The pushboard in a diaper packaging machine is a critical component that helps to control the movement of the filled diaper bags as they move through the packaging process. The pushboard is typically mounted on the front of the machine, and is designed to guide the bags into position as they are sealed and cut.
Manufacturer Advantage We have strong power to support our production, from factory environment construction to equipment
configuration, all leading to high quality products.
Innovation

Innovation

Imako are constantly innovating and developing new technologies to improve the performance and efficiency of TP-T180 valmet tissue machine. This commitment to innovation allows them to offer the latest and greatest advancements to their customers.
Loyal Service

Loyal Service

The trust of our customers is our achievement. We cherish every customer and grow with them as partners.
Expertise

Expertise

Imako have a deep understanding of the industry and the specific needs of their customers. This expertise allows them to design and build high-quality TP-T180 valmet tissue machine that are tailored to meet the unique requirements of each customer.
Increased productivity

Increased productivity

TP-T180 valmet tissue machine are designed to be efficient and accurate, reducing the risk of errors and increasing the speed of the packaging process. This can lead to increased productivity and a more profitable business.
TP-T180 valmet tissue machineRelated Quality Control
Performance testing
Performance testing
We conduct rigorous performance testing on each machine to ensure that it meets the required specifications. This includes testing for speed, accuracy, and reliability.
Quality control checks
Quality control checks
We perform regular quality control checks to ensure that TP-T180 valmet tissue machine meets the required standards. This includes testing for functionality, safety, and user experience.
Design and engineering
Design and engineering
Imako have a team of experienced engineers and designers who use the latest 3D modeling software to design and test the TP-T180 valmet tissue machine before they are built.
Material inspection
Material inspection
Imako use high-quality materials to build TP-T180 valmet tissue machine, and they inspect each component to ensure that it meets the required standards.
TP-T180 valmet tissue machineRelated Services
One year warranty

1. One year warranty

All the machine has one year warranty.

2. Maintenance

We offer maintenance services to help customers keep TP-T180 valmet tissue machine in good working order. This includes regular cleaning and lubrication, as well as more extensive repairs as needed.
Maintenance
Upgrades

3. Upgrades

Imako offer upgrades to help customers improve the performance and functionality of TP-T180 valmet tissue machine. This includes adding new features or capabilities, as well as improving existing ones.

Related Certification
Imako TP-100S Tissue Packing Machine CE Certificate
Imako TP-T180M Automatic Tissue Packing Machine UDEM Certificate
Imako TP-T200M Automatic Tissue Wrapping Machine UDEM Certificate
Imako Automatic Packaging Machine SGS Certificate
Related FAQ
1.What types of items can be wrapped in a Toilet Paper packing machine?
Toilet Paper packing machines can be used to wrap a wide range of items, including facial tissues, bath tissues, wipes, and other hygiene products.
2.How to Guarantee transaction security?
Before delivery, we will send the pictures and videos to you to check the quality. Or you could arrange checking on your own. Also license and certificate could be provided for checking.
3.How fast can a tissue packing machine wrap items?
The speed of a tissue paper packing machine can vary depending on the specific model and the size of the items being wrapped. However, the machines are designed to be fast and efficient, allowing for high-volume production.
4.How do I maintain a packing machine?
To maintain TP-T180 valmet tissue machine, it's important to regularly clean and sanitize the machine, keep it well-stocked with packaging materials, and regularly check for any issues or signs of wear and tear. You should also follow the manufacturer's instructions for routine maintenance and upk
5.How do I choose the right tissue wrapping machine for my business?
When choosing a tissue wrapping machine, it's important to consider factors such as the size and volume of your business, the type of paper towels you use, and your budget. You should also consider the level of automation you require and the amount of space you have available for the machine.
6.What are the benefits of using packaging machine?
Using TP-T180 valmet tissue machine has several benefits, including increased efficiency, improved accuracy, and reduced labor costs. It also helps to ensure consistent packaging and a cleaner, more hygienic work environment.
