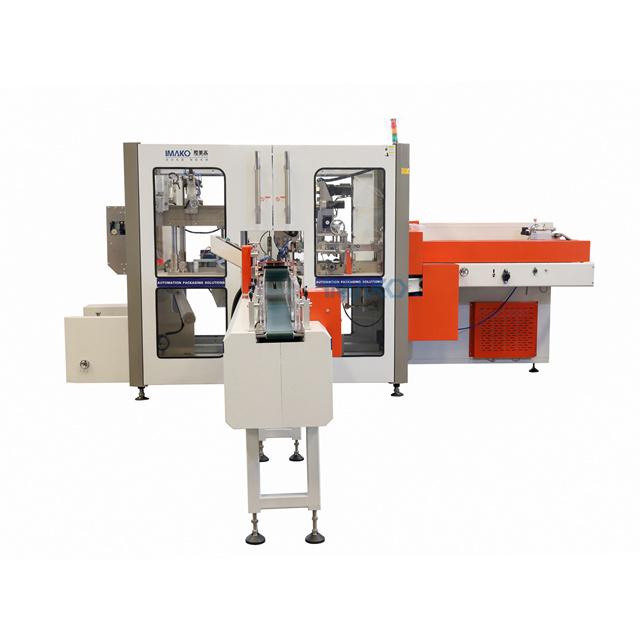

TP-T450A Face Tissue Wrapper Full Automatic Tissue Paper Packing Machine

Price: Negotiable
Model Number: TP-T450A
Power: 12.42KW
Application: Facial Tissue,Napkin,V fold Hand Towel Paper
Weight: 3000KG
Output: 180 Packs/Min
Packaging dimension: L(95~210) /W(80~100) /H(30~100)
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.


1.TP-T450A multi servo high spped facial tissue single wrapping machine is suitable for automatically packing facial tissue paper, V fold wipes, napkins or similar Non-woven fabric, dust-free paper by plastic film three-dimensional wrapping.

2. This machine can run in high speed stably with low noise, it has the advantages of simple operation, wide range of packaging, quick specification conversion, convenient maintenance, low cost,etc.

3.Standard functions: Electronic handwheel adjustment, tissue hook forming, bag shaping, slapping shaping; Automatic speed adjustment and paper towel incoming flow detection, paper towel height, length detection, alarm stop function; torque overload protection; The main push rod, board seeding and movable edge guide are equipped with cylinder overload protection function.

TP-T450A main parameter configuration

Scope of application

Facial tissue, V fold wipes, napkins

Power supply

380V/50Hz

Feeding mode

ASF multi - stage intelligent feeding system

Total power (KW)

12.42

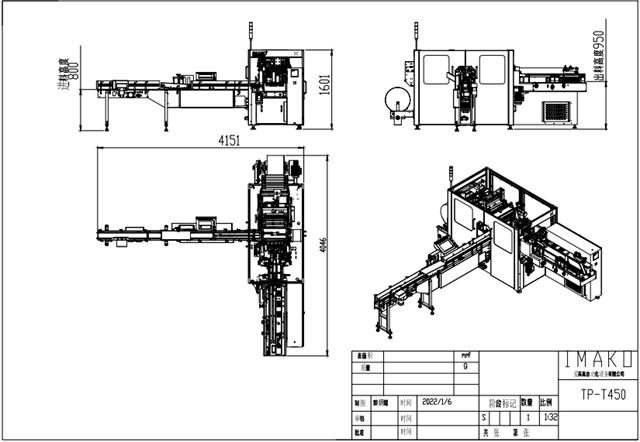

Machine size(mm)

L4150*W4046*H1600

Machine noise (dB)

≤85

Machine weigh(KG)

3000

Perforation option

Straight line / Oval shape form

Alternative

Film thickness (mm)

0.04-0.05

Packaging material

CPPPE&Complex film

Film roll Max. range(mm)

Diameter:≤500Width:340

Movement control mode

16 servo shafts

positioning control

Compressed air (mpa)

Air source≥0.5

Special configuration

Three shaping function unitsElectronic handwheel adjustment Unit (All units can operate independently)

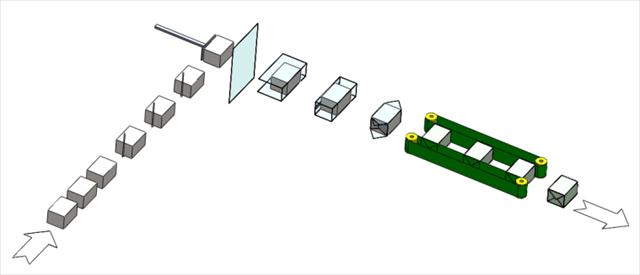

TP-T180流程图1 .png





Face Tissue Wrapper Standard functions:

Electronic handwheel adjustment, tissue hook forming, bag shaping, slapping shaping;

Automatic speed adjustment and paper towel incoming flow detection, paper towel height, length detection, alarm stop function;

Torque overload protection;

The main push rod, board seeding and movable edge guide are equipped with cylinder overload protection function.





TP-T180流程图1 .png

TP-T450A Face Tissue Wrapper Full Automatic Tissue Paper Packing MachineMain Parts

1. Output part

Output of the finished product.

2. Motors

The motors are the power source of the robot. They receive instructions from the control system and use that energy to move the arm and gripper.

3. Bagging components

It is usually equipped with a sensor that ensures the bags are properly positioned before the filling process begins.
Manufacturer Advantage We have strong power to support our production, from factory environment construction to equipment
configuration, all leading to high quality products.
Efficient Reaction

Efficient Reaction

24 hours online service is hard but our team loves to help our customers solve problems, that what we try to do.
Cost savings

Cost savings

By automating the paper towel packaging process, businesses can save time, labor costs, and materials. This can result in significant cost savings over time, allowing companies compete more effectively in the marketplace.
Quick Delivery

Quick Delivery

Shipment requires 20 days for stored machine and 60 days for customized product.
Expertise

Expertise

Imako have a deep understanding of the industry and the specific needs of their customers. This expertise allows them to design and build high-quality TP-T450A Face Tissue Wrapper Full Automatic Tissue Paper Packing Machine that are tailored to meet the unique requirements of each customer.
TP-T450A Face Tissue Wrapper Full Automatic Tissue Paper Packing MachineRelated Quality Control
Supplier Management Team
Supplier Management Team
The goal of our supplier management team is to effectively monitor the timely and high-quality delivery of suppliers, improve process control, promote synergy and common progress between suppliers and the company.
Performance testing
Performance testing
We conduct rigorous performance testing on each machine to ensure that it meets the required specifications. This includes testing for speed, accuracy, and reliability.
Parts Storage Management
Parts Storage Management
we use a efficient systems to help visualize the process, making the process of purchasing, checking, warehousing and using of raw materials efficient and transparent.
Certification
Certification
Imako obtain certifications from independent organizations to ensure that their products meet industry standards and regulatory.
TP-T450A Face Tissue Wrapper Full Automatic Tissue Paper Packing MachineRelated Services
Remote diagnosis service overseas

1. Remote diagnosis service overseas

Necessary, engineers are available to do machinery service overseas but buyer need to responsible for all the expenses. Usually equipment failure occurs, our after-sales service technician will contact you as soon as possible to solve the problem.

2. Maintenance

We offer maintenance services to help customers keep TP-T450A Face Tissue Wrapper Full Automatic Tissue Paper Packing Machine in good working order. This includes regular cleaning and lubrication, as well as more extensive repairs as needed.
Maintenance
Installation

3. Installation

We offer installation services to help customers set up TP-T450A Face Tissue Wrapper Full Automatic Tissue Paper Packing Machine in their facilities. This includes connecting the machine to power and other utilities, as well as ensuring that it is levelled and positioned correctly.

Related Certification
Imako TP-100S Tissue Packing Machine CE Certificate
Imako TP-T180M Automatic Tissue Packing Machine UDEM Certificate
Imako TP-T200M Automatic Tissue Wrapping Machine UDEM Certificate
Imako Automatic Packaging Machine SGS Certificate
Related FAQ
1.How to Guarantee transaction security?
Before delivery, we will send the pictures and videos to you to check the quality. Or you could arrange checking on your own. Also license and certificate could be provided for checking.
2.How do I maintain a packing machine?
To maintain TP-T450A Face Tissue Wrapper Full Automatic Tissue Paper Packing Machine, it's important to regularly clean and sanitize the machine, keep it well-stocked with packaging materials, and regularly check for any issues or signs of wear and tear. You should also follow the manufacturer's instructions for routine maintenance and upk
3.Where is your factory located?
Our factory is located in Shantou city,Guangdong province,China.Which is a beautiful coastal city in the South-eastern of China.The airport name in our city is Jieyang Airport ,airport code SWA and high-speed railway station is Chaoshan Station .It's very convenient to come from Guangzhou city or
4.Are you manufacturer or trading company?
We are manufacture of automatic household paper packing machine, supports new product design, research development, component procurement, manufacturing assembly, sales promotion, andafter-sales technical services, and can provide comprehensive solutions for the complete product supply chain.
5.How fast can a tissue packing machine wrap items?
The speed of a tissue paper packing machine can vary depending on the specific model and the size of the items being wrapped. However, the machines are designed to be fast and efficient, allowing for high-volume production.
6.How do I choose the right tissue wrapping machine for my business?
When choosing a tissue wrapping machine, it's important to consider factors such as the size and volume of your business, the type of paper towels you use, and your budget. You should also consider the level of automation you require and the amount of space you have available for the machine.
