TP-R220 Full Automatic Toilet Tissue Paper Roll Packaging Machine

Price: Negotiable
Model Number: TP-R220
Power: 15.2KW,380V/60Hz
Application: Single core and coreless toilet paper rolls
Weight: 1800KG
Output: 200 Packs/Min
Packaging dimension: Length (L): 80-220 Diameter(D) 80-130 mm
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Main performance and structure features
1. Double transducer control, easy maintained, decreasing abrasion with long life.

2. human-machine operation, convenient and quick parameter setting.

3. Self diagnosis failure function, clear failure display.

4. High sensitivity optical electric color mark tracking AND digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.

8. All the controls are achieved by software, convenient for function adjusting and upgrading.


TP-R220 main parameter configuration

Design packing speed

220packs/min

Stable packing speed

≤200 pack/min

relate to product size

Maximum flm width(mm)

430

Cutter configuration

Double cutters

Film install structure

Air shaft

Machine weight(KG)

1800

Machine noise(db)

≤78dB

Percentage of pass

≥97%

Efficiency

≥85%

Power supply

380V/60Hz

Packaging film material

BOPPSpp

Film thickness

0.018-0.03




Suitable for packing roll paper, such as roll tissue, code applying paper and cash register paper etc.




Max. Work Speed:

200Pack/min

Total Power:

12KW

Pack Range(mm):

Length (L): 80-220

Diameter (D): 80-130




General function

Link conveyor system, auto monitor in feed rolls flow, machine auto-stop for limited rolls, rolls auto arrange and feed function, auto stop for abnormal operation and no facial tissue condition, auto alarm and stop for no film, film cutting position electronic auto adjust function, auto-memory and keep parameters function,  main machine jog and separated action function, side-sealing part separated action function, whole machine linkage and emergency stop function, whole machine cycle stop and auto display defaults function.

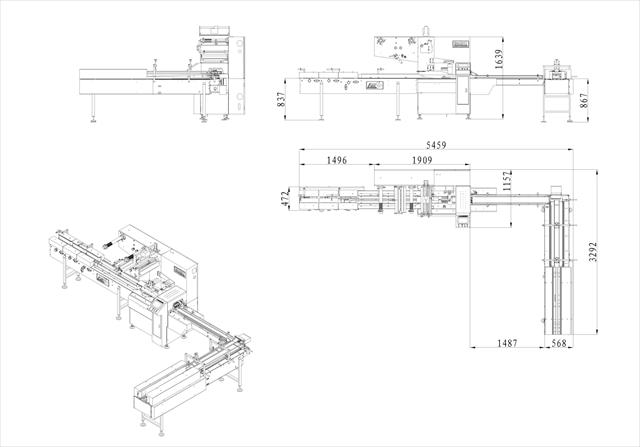

downLoadImg (1).png

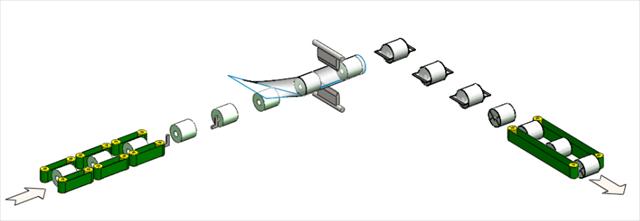

packing procedure.png

TP-R220 Full Automatic Toilet Tissue Paper Roll Packaging MachineMain Parts
Film Dragging Rollers

1. Film Dragging Rollers

The Film Dragging Rollers are an important component of the toilet roll packing machine. They are used to pull the film across the surface of the toilet rolls and ensure that the film is tightly wrapped around the rolls. The Film Dragging Rollers are also designed to be adjustable, which allow

2. Electric motors

The electric motors used in toilet roll packing machines are typically selected based on the specific requirements of the machine. Factors such as the speed, torque, and power output needed to drive the various components are all taken into consideration when selecting the motor.
Electric motors
Conveyor Timing Belt

3. Conveyor Timing Belt

The Conveyor Timing Belt is a type of belt that is specially designed to transfer power from the motor to the rollers of the machine. It is responsible for driving the rollers that move the toilet rolls through the machine. The Conveyor Timing Belt is typically made of materials such as rubber or polyurethane, which are known for their durability, flexibility, and resistance to wear and tear.
TP-R220 Full Automatic Toilet Tissue Paper Roll Packaging MachineRelated Quality Control
Performance testing
Performance testing
We conduct rigorous performance testing on each machine to ensure that it meets the required specifications. This includes testing for speed, accuracy, and reliability.
Customer feedback
Customer feedback
We value customer feedback and use it to continuously improve the quality of machines. This includes incorporating customer suggestions and addressing any issues that arise.
Material inspection
Material inspection
Imako use high-quality materials to build TP-R220 Full Automatic Toilet Tissue Paper Roll Packaging Machine, and they inspect each component to ensure that it meets the required standards.
Design and engineering
Design and engineering
Imako have a team of experienced engineers and designers who use the latest 3D modeling software to design and test the TP-R220 Full Automatic Toilet Tissue Paper Roll Packaging Machine before they are built.
Manufacturer Advantage We have strong power to support our production, from factory environment construction to equipment
configuration, all leading to high quality products.
Loyal Service

Loyal Service

The trust of our customers is our achievement. We cherish every customer and grow with them as partners.
Quick Delivery

Quick Delivery

Shipment requires 20 days for stored machine and 60 days for customized product.
Professional Team

Professional Team

We have more than 12 years experiences in household paper production industry and build a professional team with 12 engineers.
Improved hygiene

Improved hygiene

TP-R220 Full Automatic Toilet Tissue Paper Roll Packaging Machine are designed to be clean and hygienic, reducing the risk of contamination and ensuring that products are packaged in a safe and sanitary manner.
TP-R220 Full Automatic Toilet Tissue Paper Roll Packaging MachineRelated Services
To visit the factory

1. To visit the factory

Welcome to contact us to book a factory tour!

2. Upgrades

Imako offer upgrades to help customers improve the performance and functionality of TP-R220 Full Automatic Toilet Tissue Paper Roll Packaging Machine. This includes adding new features or capabilities, as well as improving existing ones.
Upgrades
Technical support and training service

3. Technical support and training service

Imako provides user training service, lifetime technical support and telephone consultation, allowing users to foresee and avoid potential problems while ensuring all equipment we provided remain at optimal running status.
