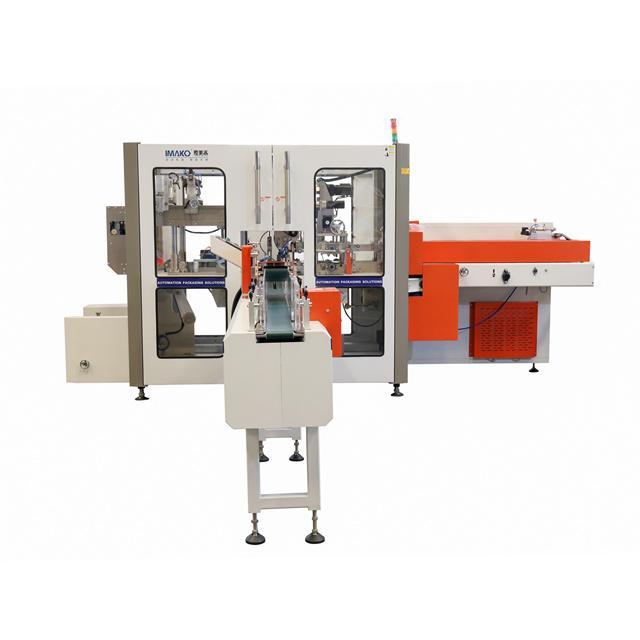

TP-R220 fully automatic toilet paper making machine

Price: Negotiable
Model Number: TP-R220
Power: 15.2KW,380V/60Hz

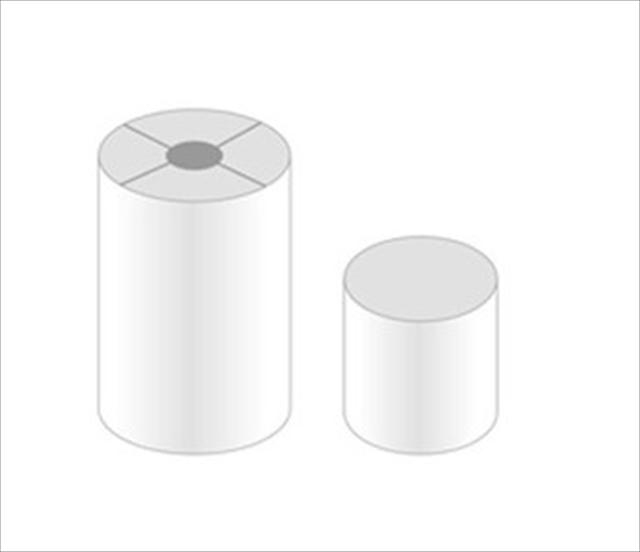

Application: Single core and coreless toilet paper rolls
Weight: 1800KG
Output: 200 Packs/Min
Packaging dimension: Length (L): 80-220 Diameter(D) 80-130 mm
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote


TP-R220 main parameter configuration

Design packing speed

220packs/min

Stable packing speed

≤200 pack/min

relate to product size

Maximum flm width(mm)

430

Cutter configuration

Double cutters

Film install structure

Air shaft

Machine weight(KG)

1800

Machine noise(db)

≤78dB

Percentage of pass

≥97%

Efficiency

≥85%

Power supply

380V/60Hz

Packaging film material

BOPP、Spp

Film thickness

0.018-0.03

When it comes to toilet paper production, the fully automatic toilet paper making machine is a game changer. This advanced technology makes it possible for companies to produce high-quality toilet paper in large quantities, without compromising on efficiency or quality.

Increased Productivity

The fully automatic toilet paper making machine is able to carry out all the necessary processes involved in toilet paper production, from cutting and pasting to winding and sealing, without any human intervention. This greatly reduces the risk of errors and delays, resulting in significantly higher productivity levels. This means that companies can produce more toilet paper in less time, at a lower cost, enabling them to keep up with demand and increase their profits.

Improved Quality

The fully automatic toilet paper making machine also ensures a consistently high level of quality throughout the entire production process. This is because the machine follows a pre-determined set of instructions and has built-in sensors that detect any irregularities in the production process. This means that there are fewer defects in the final product, resulting in higher customer satisfaction rates and a stronger reputation for the company.

Cost Savings

The fully automatic toilet paper making machine also leads to significant cost savings for companies. This is because it eliminates the need for manual labor and reduces the risk of material waste, resulting in lower production costs. Additionally, the machine requires minimal maintenance and has a long lifespan, meaning that companies can save on repair and replacement costs in the long run.

In conclusion, the fully automatic toilet paper making machine is a crucial tool for companies involved in toilet paper production. With its ability to increase productivity, improve quality, and save costs, it is no wonder that this technology is becoming increasingly popular among industry players.

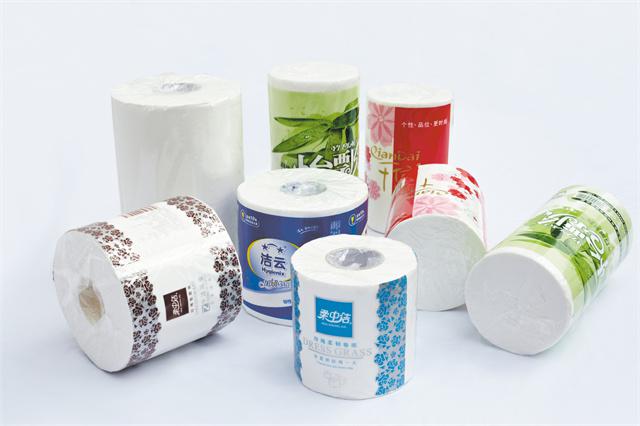

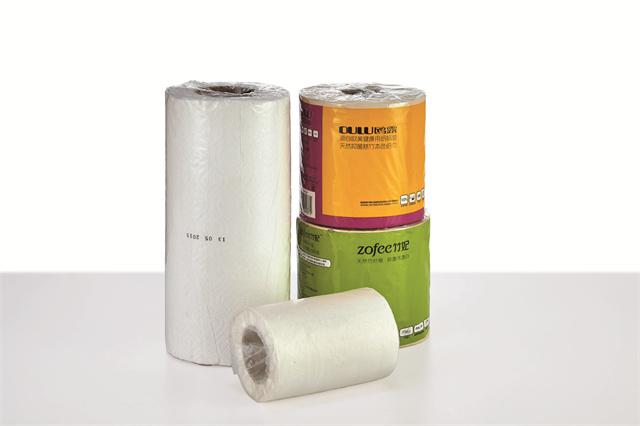

Suitable for packing roll paper, such as roll tissue, code applying paper and cash register paper etc.




Max. Work Speed:

200Pack/min

Total Power:

12KW

Pack Range(mm):

Length (L): 80-220

Diameter (D): 80-130




General function

Link conveyor system, auto monitor in feed rolls flow, machine auto-stop for limited rolls, rolls auto arrange and feed function, auto stop for abnormal operation and no facial tissue condition, auto alarm and stop for no film, film cutting position electronic auto adjust function, auto-memory and keep parameters function,  main machine jog and separated action function, side-sealing part separated action function, whole machine linkage and emergency stop function, whole machine cycle stop and auto display defaults function.

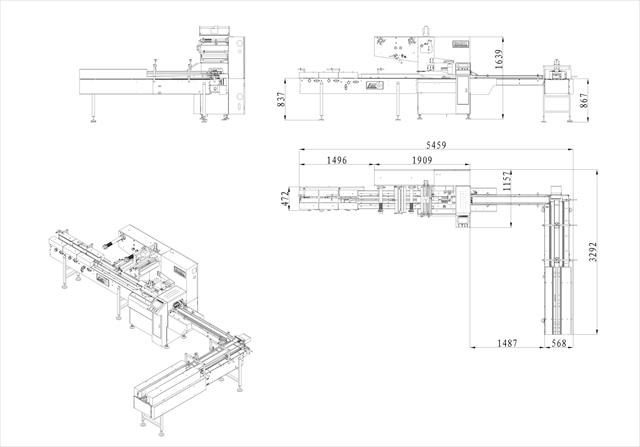

downLoadImg (1).png

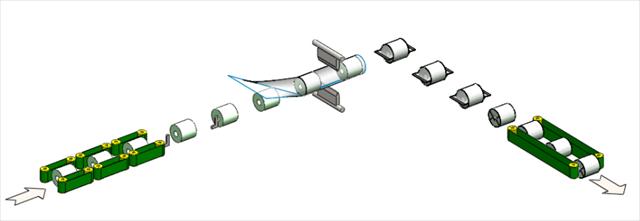

packing procedure.png

TP-R220 fully automatic toilet paper making machineMain Parts
Speed Reducer

Speed Reducer

The speed reducer is typically located between the electric motor and the gearbox, and it works by reducing the rotational speed of the motor while increasing the torque. This allows the machine to operate at a slower speed, which is necessary for the efficient movement of the rollers and other components.
Film-cutting knife holder

Film-cutting knife holder

The Film-cutting knife holder is usually designed with a specific angle and position, which helps to ensure that the blade makes a straight and accurate cut. It is also designed to be easily adjustable, which allows for different sizes and shapes of film to be used as needed.
Film Dragging Rollers

Film Dragging Rollers

The Film Dragging Rollers are an important component of the toilet roll packing machine. They are used to pull the film across the surface of the toilet rolls and ensure that the film is tightly wrapped around the rolls. The Film Dragging Rollers are also designed to be adjustable, which allow
Conveyor Timing Belt

Conveyor Timing Belt

The Conveyor Timing Belt is a type of belt that is specially designed to transfer power from the motor to the rollers of the machine. It is responsible for driving the rollers that move the toilet rolls through the machine. The Conveyor Timing Belt is typically made of materials such as rubber or polyurethane, which are known for their durability, flexibility, and resistance to wear and tear.
TP-R220 fully automatic toilet paper making machineRelated Quality Control
Performance testing
Performance testing
We conduct rigorous performance testing on each machine to ensure that it meets the required specifications. This includes testing for speed, accuracy, and reliability.
Parts Storage Management
Parts Storage Management
we use a efficient systems to help visualize the process, making the process of purchasing, checking, warehousing and using of raw materials efficient and transparent.
BOM Check
BOM Check
During our production process, operators will check the bill of materials to find and test the right parts. Ensure the structure and function of TP-R220 fully automatic toilet paper making machine meet the requirements.
Debugging and Testing
Debugging and Testing
After the completion of the machine, it needs to be debugged and tested to ensure that the performance of the equipment meets the requirements and operates normally before it can be packaged and distributed, and then leave the factory.

Customer Reviews



Score
 Remove

Review Title

Review Text

   this roll paper packing machine into our production line.


Nathan  2024-06-05

We've seen a noticeable improvement in our packaging efficiency since implementing
   This Toilet Paper Rolls Packing Machine's compact


Hazel  2024-06-05

design allows us to maximize space in our facility, optimizing our workflow.
   this toilet roll pakaging machine ensures long-term performance


Harper  2024-06-05

The durability of this toilet roll pakaging machine ensures long-term performance, delivering consistent results day after day.
   With its user-friendly interface


lisa  2024-06-05

our staff quickly learned to operate this toilet paper packing machine without extensive training.
   Efficient and reliable


Camila  2024-06-05

this Toilet Paper Rolls Packing Machine has streamlined our packaging process, saving us time and resources
