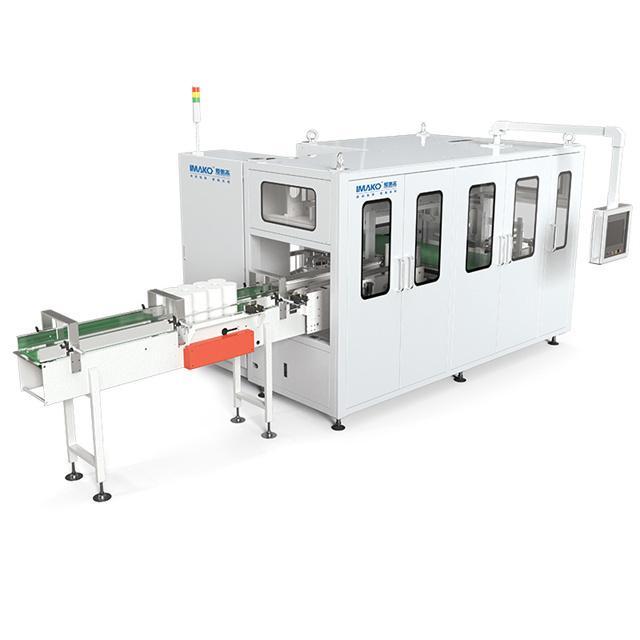

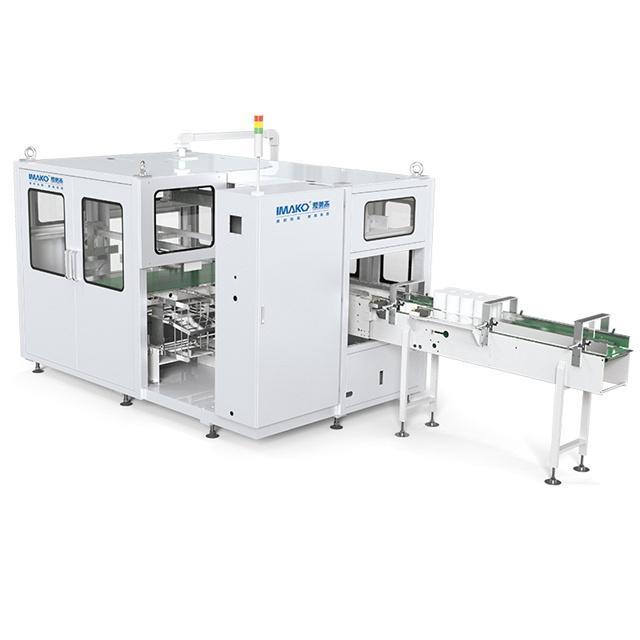

TP-B30R toilet paper making machine

Price: Negotiable
Model Number: TP-B30R
Power: 20.2KW
Application: single packed/unpack core/coreless roll paper
Weight: 3400KG
Output: 22Pack/min
Packaging dimension: L(170-660) /W(180-260) /H(85-170)MM
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

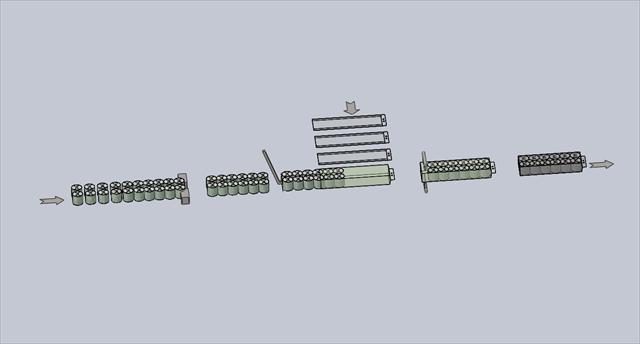

★Adopts servos control for tissue arrangement, counting, filling preparation, tissue fill to bag, bag catching, bag conveying. This machine is easy to operation and maintenance.

★Adopts central vacuum management mode, can efficiency lower power consumption.

★Adopts intelligent sealing system, alternating current control, up & down independent temperature control, can meet different kinds of packaging materials, ensure nice sealing and stably running.

★Equipped with functions of waste bag free stop automatic rejection, air source management, fault alarm and display, servo overload protection.

TP-B30R main parameter configuration

Specification/Model/

ltem

TP-B30RV、TP-B30RM

Scope of application

Single core/coreless roll paper

Feeding type

ASF automatic double lanes

intelligent feeding system

Exclude standing

device

Design speed

25 packs/min

relate to product size

Stable speed

15-22 packs/min

relate to product size

Packaging film

install structure

Dual bag racks

Gusset type

Vacuum mould

Scrap cut off mode

Insert & cut teeth share

Bag storage QTY

600 pre-bag

Can customize

if size exceed

Machine weight(KG)

3400

Bag material

PE film

Thickness 0.05mm

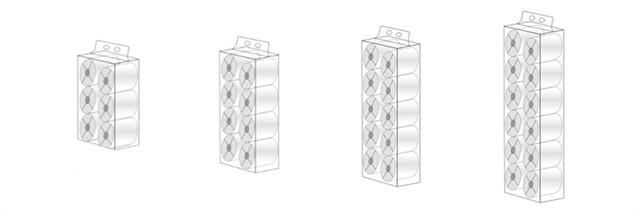

Packing style(mm)

①L90-170

D.90-105

Suitable for corel

coreless roll paper

2x3、 2x4、2x5、2x6

②L85-170

D.90-130

2x3、2x4、2x5

Air compression(MPA)

Pressure 0.6

Flow 300Lmin

Buyer provide

Bag type

Pre-bag

Air hole≥2.5mm

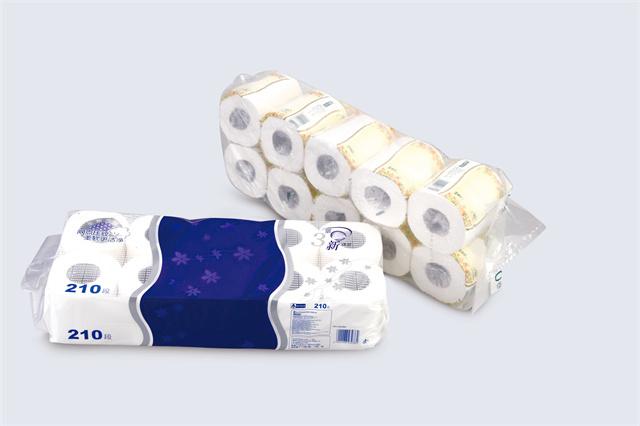

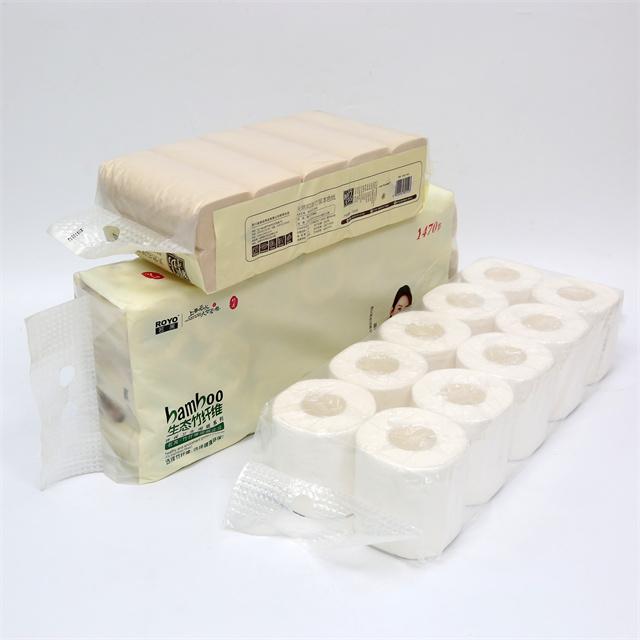

TP-B30R series automatic roll paper bundle packing machine is suitable for automatic bundle packing single packed/unpack core/coreless roll paper.





The creation of toilet paper is one of the most important inventions in the history of personal hygiene. Toilet paper making machines have made it easier for manufacturers to produce toilet paper in bulk, helping to supply a growing population's needs. Here, we'll dive into the details of these machines to better understand how they work and what makes them so essential.

How Toilet Paper Making Machines Work

Toilet paper making machines are complex pieces of machinery that play a crucial role in creating this iconic product. These machines are designed to turn raw materials such as wood pulp or recycled paper into the soft and fluffy toilet tissue that we all know and use in our daily lives. The process begins with raw materials being fed into a pulping machine that turns them into a fine pulp. This mixture is then sent to the main production machine where it is converted into sheets of toilet paper.

The Importance of Quality Control

Quality control is a vital part of any toilet paper manufacturing operation. It ensures that the final product is safe, hygienic and of a consistent quality. Modern toilet paper making machines are equipped with built-in quality control systems that help manufacturers to minimize waste and detect problems early in the production process. These systems use sensors and other technologies to monitor factors such as paper thickness and moisture levels, allowing operators to adjust the machine's settings as needed.

The Benefits of Modern Toilet Paper Making Machines

Modern toilet paper making machines offer significant benefits over their older counterparts. They are faster, more efficient and more reliable than ever before, allowing manufacturers to increase production while reducing costs. Additionally, many of these machines are designed to be easy to use and maintain, with most issues able to be fixed quickly and with minimal downtime. With the right tools and technology, manufacturers can meet the growing demand for toilet paper and ensure a steady supply for consumers around the world.

In conclusion, toilet paper making machines have become an integral part of the modern world. These complicated but essential pieces of technology ensure that we have a steady supply of high-quality toilet paper to meet our daily needs. As technology continues to improve, it's likely that toilet paper making machines will become even more efficient and reliable, helping us to maintain the highest standards of personal hygiene for years to come.

Equipped with functions of waste bag free stop automatic rejection, air source management, fault alarm and display, servo overload protection.

TP-B30R 1.jpg


TP-B30R toilet paper making machineMain Parts
Film-cutting knife holder

Film-cutting knife holder

The Film-cutting knife holder is usually designed with a specific angle and position, which helps to ensure that the blade makes a straight and accurate cut. It is also designed to be easily adjustable, which allows for different sizes and shapes of film to be used as needed.
Conveyor Timing Belt

Conveyor Timing Belt

The Conveyor Timing Belt is a type of belt that is specially designed to transfer power from the motor to the rollers of the machine. It is responsible for driving the rollers that move the toilet rolls through the machine. The Conveyor Timing Belt is typically made of materials such as rubber or polyurethane, which are known for their durability, flexibility, and resistance to wear and tear.
Film Dragging Rollers

Film Dragging Rollers

The Film Dragging Rollers are an important component of the toilet roll packing machine. They are used to pull the film across the surface of the toilet rolls and ensure that the film is tightly wrapped around the rolls. The Film Dragging Rollers are also designed to be adjustable, which allow
Film Frame

Film Frame

The Film Frame is an important component of the toilet roll packing machine. It is used to support and hold the film that is used to wrap the toilet rolls.It is typically made of metal or plastic, and it is designed to be sturdy and durable. attached to the machine frame, and it is positioned in a way that allows the film to be easily stretched and wrapped around the toilet rolls.
TP-B30R toilet paper making machineRelated Quality Control
Assembly
Assembly
Imako have strict assembly processes in place to ensure that each machine is built to the highest standards. This includes testing and inspection at each stage of the assembly process.
BOM Check
BOM Check
During our production process, operators will check the bill of materials to find and test the right parts. Ensure the structure and function of TP-B30R toilet paper making machine meet the requirements.
Performance testing
Performance testing
We conduct rigorous performance testing on each machine to ensure that it meets the required specifications. This includes testing for speed, accuracy, and reliability.
Parts Storage Management
Parts Storage Management
we use a efficient systems to help visualize the process, making the process of purchasing, checking, warehousing and using of raw materials efficient and transparent.

Customer Reviews



Score
 Remove

Review Title

Review Text

   this toilet roll pakaging machine ensures long-term performance


Harper  2024-06-05

The durability of this toilet roll pakaging machine ensures long-term performance, delivering consistent results day after day.
   With its user-friendly interface


lisa  2024-06-05

our staff quickly learned to operate this toilet paper packing machine without extensive training.
   this roll paper packing machine into our production line.


Nathan  2024-06-05

We've seen a noticeable improvement in our packaging efficiency since implementing
   This Toilet Paper Rolls Packing Machine's compact


Hazel  2024-06-05

design allows us to maximize space in our facility, optimizing our workflow.
   Efficient and reliable


Camila  2024-06-05

this Toilet Paper Rolls Packing Machine has streamlined our packaging process, saving us time and resources
