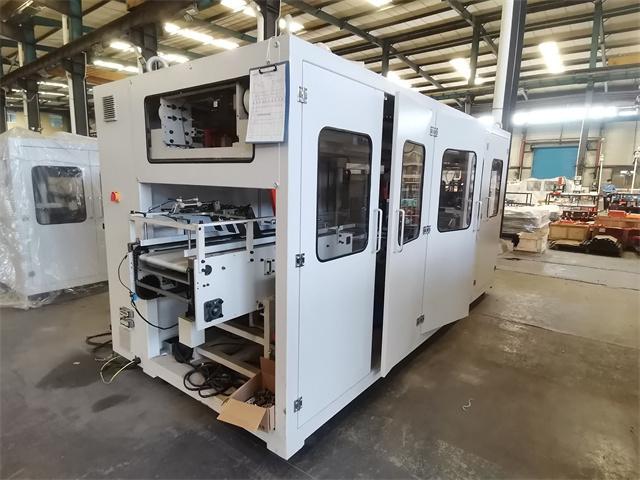

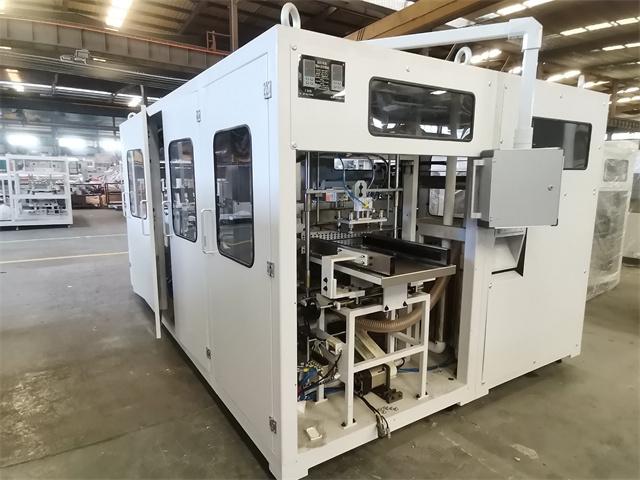

TP-B30RE Toilet Paper Kitchen Roll Towel Bag Wrapping Packing Machine

Price: Negotiable
Model Number: TP-B30RE
Power: 25KW
Application: Single Packed/Unpack Core/Coreless Roll Paper
Weight: 3400KG
Output: 22 Pack/Min

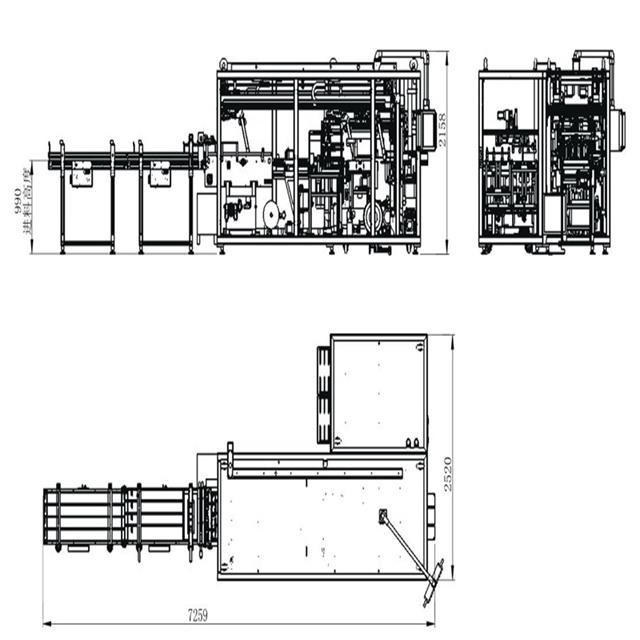

Packaging dimension: Length (L): 300-690 Width (W): 160-440 Height (H): 80-280 mm
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote


★Adopts servos control for tissue arrangement, counting, filling preparation, tissue fill to bag, bag catching, bag conveying. This machine is easy to operate and maintain.

★Adopts central vacuum management mode, can efficiency lower power consumption.

★Adopts intelligent sealing system, alternating current control, up & down independent temperature control, can meet different kinds of packaging materials, ensure nice sealing and stably running.

★Equipped with functions of waste bag free stop automatic rejection, air source management, fault alarm and display, servo overload protection.

TP-B30RE main parameter configuration

Specification\Model\

ltem

TP-B30REV、TP-B30REM

Scope of Application

Core、coreless roll paper

Feeding type

ASF auto double lanes feeding system

Design speed

22 packs/min

Stable speed

20packs/min(relate to product size)

Gusset type

Vacuum forming mould

Cut off modo

lnsert & cut

Bag storage structure

Dual bag racks

Bag storage qty

600 bags

Bag material

PE film

Compressed air(MAP)

Pressure O.6MPA Flow 30l/min

Power supply

380V/50HZ

Total motor power(KW)

19

Machine weight (KG)

3400

Bag type

premade bag

Servo control shaft nos

10

Electrical control system

VEICHI,MITSUBISHI

Temp.system

YUDILAN

Pneumatic system

SMC.AlRTAC

Optional device

lnk code printer.thermos transfer printer

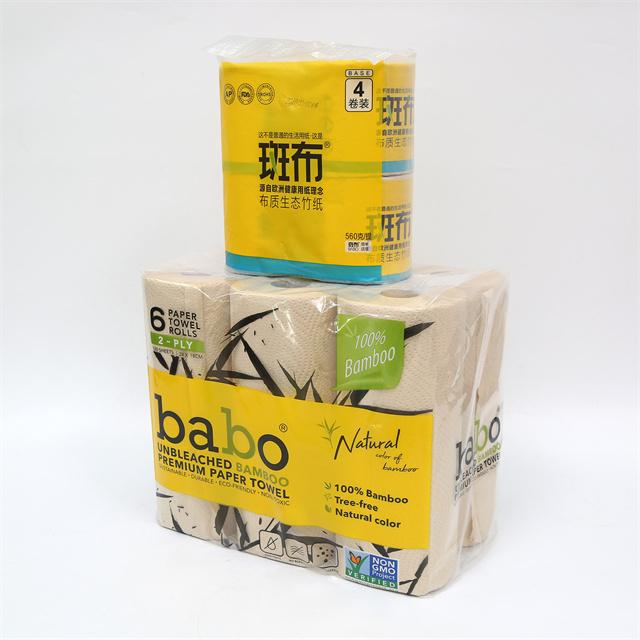

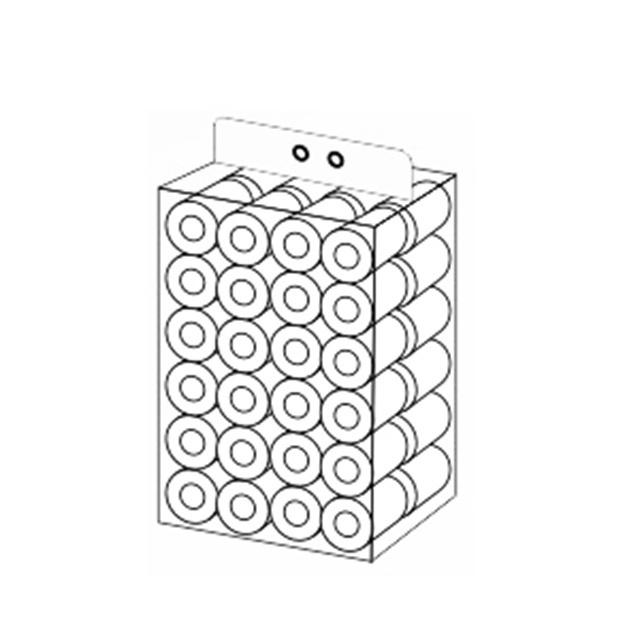

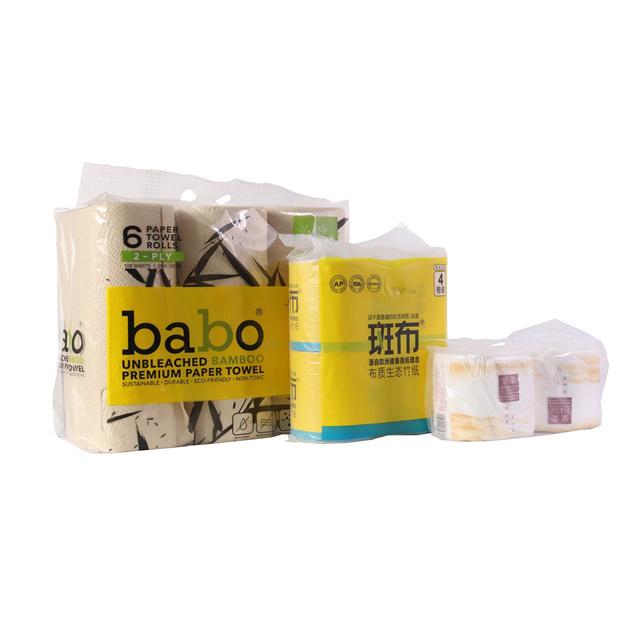

TP-B30RE series automatic roll paper bundle packing machine is suitable for automatic bundle packing single packed/unpack core/coreless roll paper.




Equipped with functions of waste bag free stop automatic rejection, air source management, fault alarm and display, servo overload protection.

TP-B30RE 4.jpg
TP-B30RE Toilet Paper Kitchen Roll Towel Bag Wrapping Packing MachineMain Parts
Speed Reducer

Speed Reducer

The speed reducer is typically located between the electric motor and the gearbox, and it works by reducing the rotational speed of the motor while increasing the torque. This allows the machine to operate at a slower speed, which is necessary for the efficient movement of the rollers and other components.
Film Frame

Film Frame

The Film Frame is an important component of the toilet roll packing machine. It is used to support and hold the film that is used to wrap the toilet rolls.It is typically made of metal or plastic, and it is designed to be sturdy and durable. attached to the machine frame, and it is positioned in a way that allows the film to be easily stretched and wrapped around the toilet rolls.
Conveyor Timing Belt

Conveyor Timing Belt

The Conveyor Timing Belt is a type of belt that is specially designed to transfer power from the motor to the rollers of the machine. It is responsible for driving the rollers that move the toilet rolls through the machine. The Conveyor Timing Belt is typically made of materials such as rubber or polyurethane, which are known for their durability, flexibility, and resistance to wear and tear.
Film-cutting knife holder

Film-cutting knife holder

The Film-cutting knife holder is usually designed with a specific angle and position, which helps to ensure that the blade makes a straight and accurate cut. It is also designed to be easily adjustable, which allows for different sizes and shapes of film to be used as needed.
TP-B30RE Toilet Paper Kitchen Roll Towel Bag Wrapping Packing MachineRelated Quality Control
Performance testing
Performance testing
We conduct rigorous performance testing on each machine to ensure that it meets the required specifications. This includes testing for speed, accuracy, and reliability.
Assembly

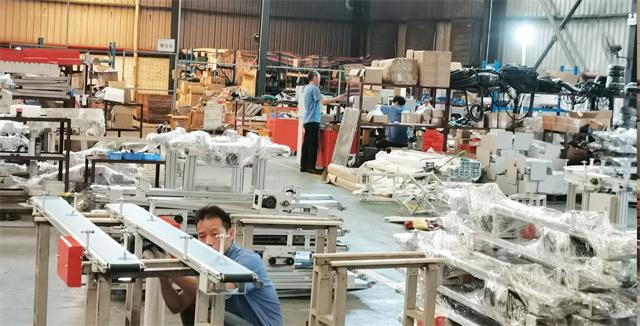

Assembly
Imako have strict assembly processes in place to ensure that each machine is built to the highest standards. This includes testing and inspection at each stage of the assembly process.
BOM Check
BOM Check
During our production process, operators will check the bill of materials to find and test the right parts. Ensure the structure and function of TP-B30RE Toilet Paper Kitchen Roll Towel Bag Wrapping Packing Machine meet the requirements.
Quality control checks
Quality control checks
We perform regular quality control checks to ensure that TP-B30RE Toilet Paper Kitchen Roll Towel Bag Wrapping Packing Machine meets the required standards. This includes testing for functionality, safety, and user experience.
