TP-T300 Full Servo Large Size Face Tissue Paper Packing Machine

Brand Name: IMAKO
Price: Negotiable
Model Number: TP-T300
Power: 12.42KW
Application: Tissue Paper,Napkin
Weight: 3000KG
Output: 60 packs/min
Packaging dimension: L(100~360) /W(90~225) /H(40~170)MM
Place of Origin: CHINA.
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

★ This machine can run in high speed stably with low noise, it has the advantages of simple operation, wide range of packaging, quick specification conversion, convenient maintenance, low cost,etc.

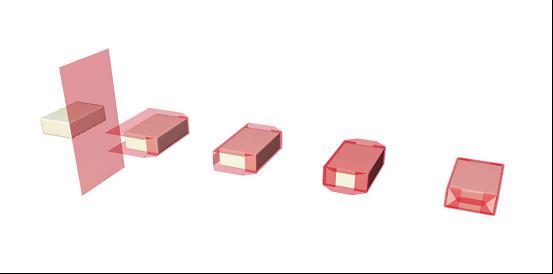

The Face Tissue Paper Packing Machine is mainly composed of a material arranging section, a paper pushing and dragging section, and a lower paper folding, corner inserting, paper combing, middle sealing, film supporting, film pulling and breaking, middle conveying and edge folding, and two side sealing and discharging sections.


TP-T300 main parameter configuration

Scope of application

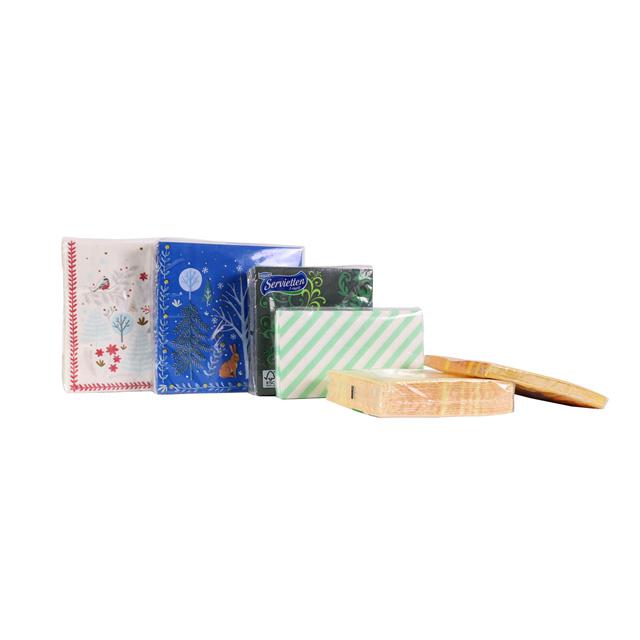

Facial tissue, V fold wipes, napkins

Power supply

380V/50Hz

Feeding mode

ASF multi - stage intelligent feeding system

Total power (KW)

12.42

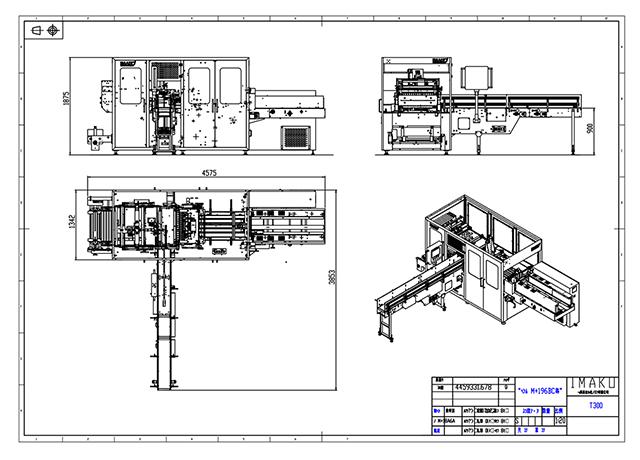

Machine size(mm)

L4150*W4046*H1600

Machine noise (dB)

≤85

Machine weigh(KG)

3000

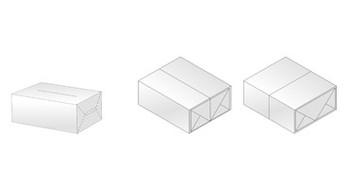

Perforation option

Straight line /Oval/ Semicircle shape form

Alternative

Film thickness (mm)

0.04-0.05

Packaging material

CPPPE&Complex film

Film roll Max. range(mm)

Diameter:≤600Width:520

Movement control mode

16 servo shafts

positioning control

Compressed air (mpa)

Air source≥0.5

Special configuration

Three shaping function unitsElectronic handwheel adjustment Unit (All units can operate independently)

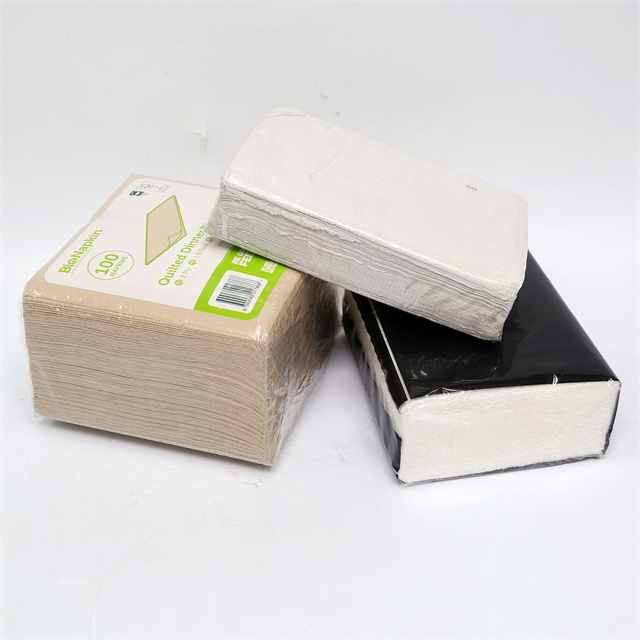

TP-T300 multi servo large size facial tissue single wrapping machine is suitable for automatically packing facial tissue paper, V fold wipes, napkins or similar Non-woven fabric, dust-free paper by plastic film three-dimensional wrapping.





Standard functions:

Electronic handwheel adjustment, tissue hook forming, bag shaping, slapping shaping;

Automatic speed adjustment and paper towel incoming flow detection, paper towel height, length detection, alarm stop function;

Torque overload protection;

The main push rod, board seeding and movable edge guide are equipped with cylinder overload protection function.

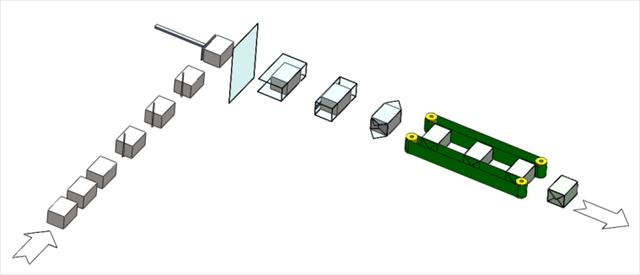

TP-T180流程图1 .png

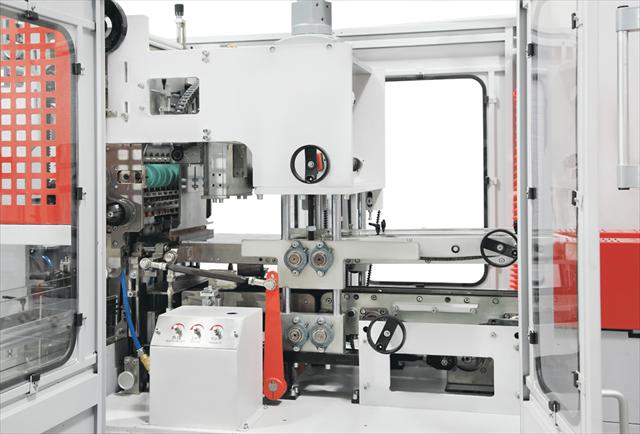

TP-T300 Full Servo Large Size Face Tissue Paper Packing MachineMain Parts
Servo motor

1. Servo motor

We use a reliable brand to ensure smooth operation at low and high speeds and accurate positional accuracy.

2. Feeding conveyor

Simple and reliable structure, reasonable transmission design.
Feeding conveyor
Swinging sealing part

3. Swinging sealing part

Strive to reduce the vibration when the swinging part stamping, ensure the stability of the swinging sealing part, improve the accuracy of the swinging sealing part , so as to improve the uniformity of side sealing, ensure the packaging effect.

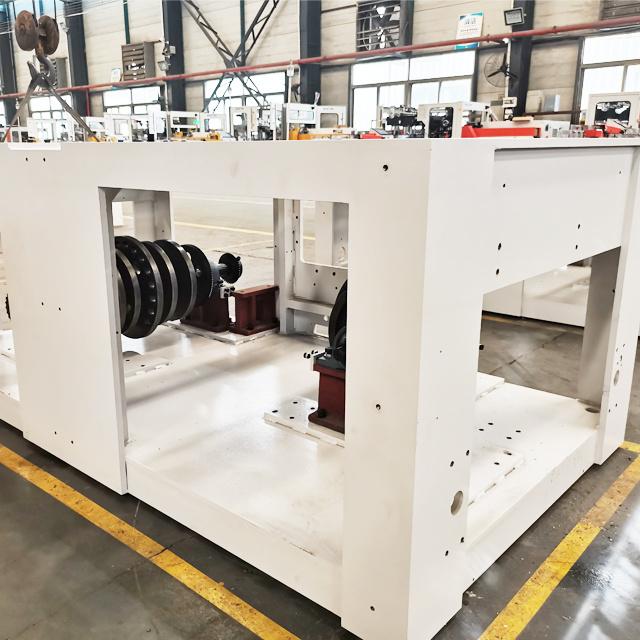

Manufacturer Advantage We have strong power to support our production, from factory environment construction to equipment
configuration, all leading to high quality products.
Loyal Service

Loyal Service

The trust of our customers is our achievement. We cherish every customer and grow with them as partners.
Quick Delivery

Quick Delivery

Shipment requires 20 days for stored machine and 60 days for customized product.
Customization

Customization

Imako are able to offer customized solutions to their customers, tailoring the TP-T300 Full Servo Large Size Face Tissue Paper Packing Machine to meet the specific needs and requirements of each business.
Innovation

Innovation

Imako are constantly innovating and developing new technologies to improve the performance and efficiency of TP-T300 Full Servo Large Size Face Tissue Paper Packing Machine. This commitment to innovation allows them to offer the latest and greatest advancements to their customers.
