TP-T15N Napkin Towel Paper Tissue Packing Machine

Brand Name: IMAKO
Price: Negotiable
Model Number: TP-T15N
Power: 12.42KW
Application: Napkin and Soft Drawn Facial Tissue
Weight: 4000kg
Output: 60Packs/Min
Packaging dimension: Length (L): 100-200 Width (W): 100-200 Height (H): 15-100 MM
Place of Origin: CHINA.
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

These machines typically have a number of features that allow for efficient and accurate packaging, such as adjustable settings for the size and shape of the package, fast and easy changeover of packaging materials, and high-speed operation.

TP-T15N main parameter configuration

Specification\Model

\item

TP-T15NTP-T15NVTP-T15NS

Film core dia.(mm)

76

Scope of application

Soft drawn facial tissue, hand towel paper, napkin

Max. film width(mm)

500

Packing style

3D wrapping

Compressed air(MPA)

0.6

Design speed

70packs/min

Power supply

380V150Hz

Production speed

15-60packs/min

Total heating power(KW)

3.6

Size mould

3 sets

Servo control shafts

8

Machine weight(KG)

4000

Electrical control system

MITSUBISHI,VEICHI,SIEMENS

Packaging material

CPP,PE film

Temp. control system

YUDLAN

Film thickness(mm)

0.035-0.05

Pneumatic system

SMC/AIRTAC

Max. film roll dia.(mm)

≤500

Option device

Air shaft, thermos transfer printer, oval shape perforation

The users of packing machines may include manufacturers of tissues and napkins, as well as other companies that need to package a variety of products in large quantities. The applications of these machines may include packaging for use in hotels, restaurants, hospitals, and other settings.





TP-T15N automatic napkin packing machine is suitable for automatically packing napkin and soft drawn facial tissue.





Standard functions: tissue arrangement and forming, void double pack feeding, electrical film correction, auto speed adjustment, tissue length error protection, tissue width error protection, torque overload protection, tissue hook forming, high temperature belts protection.

TP-T15 6.jpg

TP-T180流程图1 .png

TP-T15N Napkin Towel Paper Tissue Packing MachineMain Parts
Feeding conveyor

1. Feeding conveyor

Simple and reliable structure, reasonable transmission design.

2. Servo motor

We use a reliable brand to ensure smooth operation at low and high speeds and accurate positional accuracy.
Servo motor

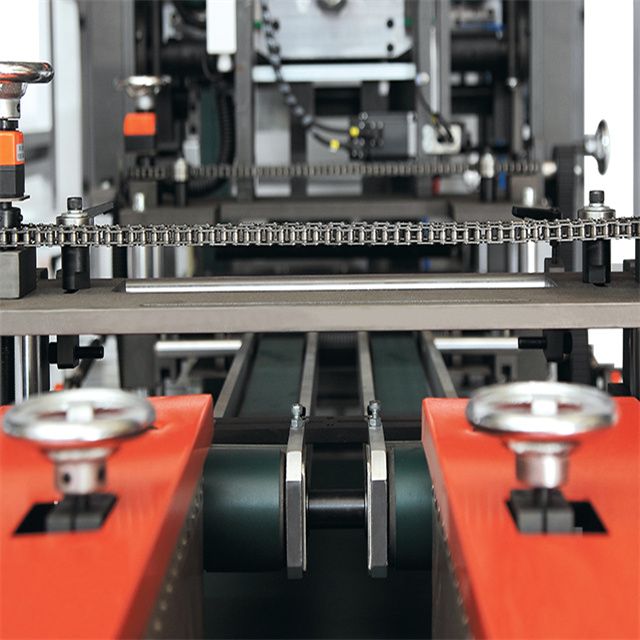

Conveying line

3. Conveying line

The Frequency conversion motor drives the conveyor belt to feed material, with photoelectric eye automatic counting function, cam-controlled push and pallet mechanism, automatic feeding blocking protection function, automatic alarm function.
Manufacturer Advantage We have strong power to support our production, from factory environment construction to equipment
configuration, all leading to high quality products.
Expertise

Expertise

Imako have a deep understanding of the industry and the specific needs of their customers. This expertise allows them to design and build high-quality TP-T15N Napkin Towel Paper Tissue Packing Machine that are tailored to meet the unique requirements of each customer.
Innovation

Innovation

Imako are constantly innovating and developing new technologies to improve the performance and efficiency of TP-T15N Napkin Towel Paper Tissue Packing Machine. This commitment to innovation allows them to offer the latest and greatest advancements to their customers.
Loyal Service

Loyal Service

The trust of our customers is our achievement. We cherish every customer and grow with them as partners.
Cost savings

Cost savings

By automating the paper towel packaging process, businesses can save time, labor costs, and materials. This can result in significant cost savings over time, allowing companies compete more effectively in the marketplace.
