TP-B35TE Series Automatic Tissue Paper Bundle Packing Machine

Brand Name: IMAKO
Price: Negotiable
Model Number: TP-B35TE
Power: 20.6KW
Application: Single Soft Packed Facial Tissue, Hand Towel Paper Napkin
Weight: 6500KG
Output: 25 Packs/Minute
Packaging dimension: Length (L): 240-450 Width (W): 120-420 Height (H): 90-270 MM
Place of Origin: CHINA.
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

★ Adopts servos control for tissue arrangement, counting, stacking, tissue fill to bag, bag catching, bag conveying, bag opening and seal parts, This machine is easy to operation and maintenance.

★ Adopts central vacuum management mode, can efficiency lower power consumption.

★ Adopts intelligent sealing system, alternating current control, up & down independent temperature control, can meet different kinds of packaging materials, ensure nice sealing and stably running.

★ The machine is suitable for bundle packing 1-3 rows and 1-3 layers, easy to change specification and maintenance, high efficiency.

TP-B35TE main parameter configuration

Specification/Model/

item

TP-B35TE

Scope of application

Single packed tissue to

bundle packing

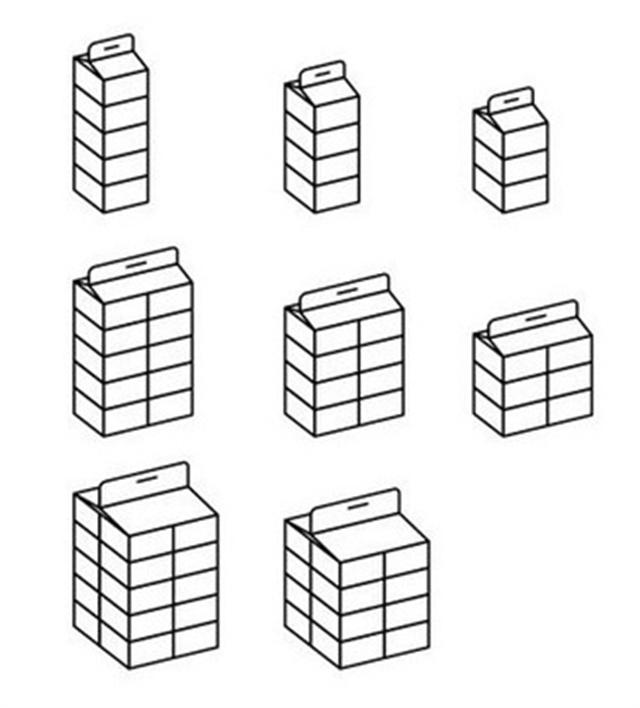

Packing styles

Feeding mode

Horizontal feeding

Packing styles

(Layer x row x column)

One Layer 1x(1-3x(3-5)

Two layers 2x(2-3x(3-5)

three layers 3x(2-3x3-5)

According to single

pack size

Design speed

25 packs/minute

Stable speed

≤20 packs/minute

Relate to product size

Bag install mode

Dual bag racks

Bag rack storage Qty

≤600 pcs prebags

Single packed

tissue range(mm)

L120-210 / W90-110/H60-100

Machine weight (KG)

6500

Bag type

CPP、PE

Thickness:0.05mm

Compressed air(MPA)

Press 0.6mpa flow 30Lmin

Power supply

380V/50HZ

Machine movement

control mode

16 shafts servo

positioning control

Servo control

Machine main

transmission mode

Servo motors drive,belts transmission

Machine color and craft

Deep grey.static spray plaint craft

Bag type

Same to manually packing

Air hole≤2.5mm

Gusset forming mode

Vacuum mold forming

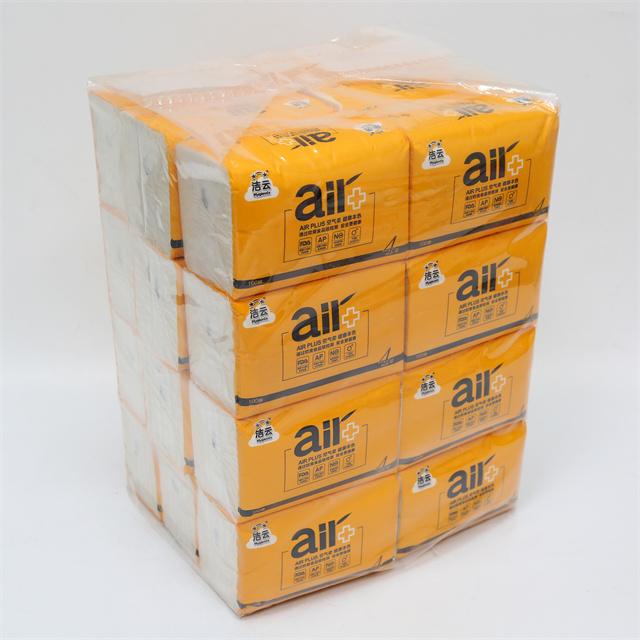

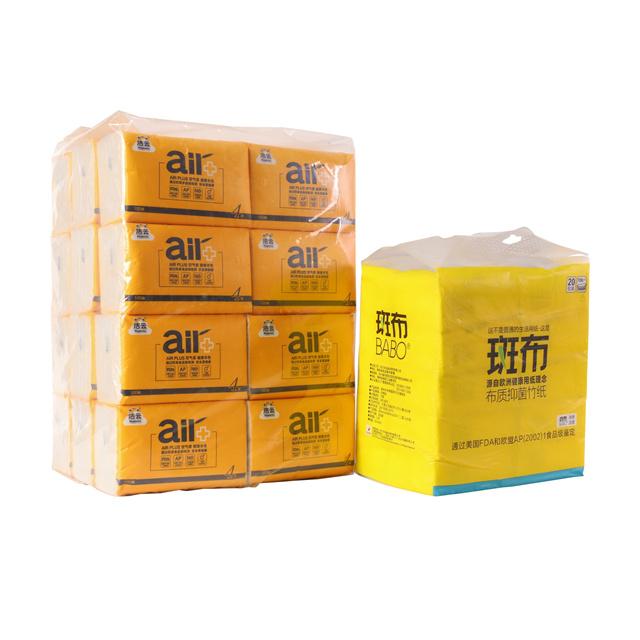

TP-B35TE series automatic tissue paper bundle packing machine is suitable for auto bundle packing single soft packed facial tissue, hand towel paper napkin.

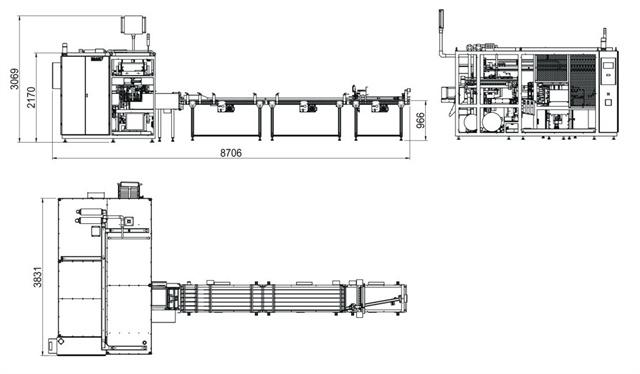

1-8-napkin-bundler_06b TP-B35TE.jpg




Equipped with functions of waste bag free stop automatic rejection, air source management, falut alarm and display, servo overload protection.

B35TE 3.jpg


TP-B35TE Series Automatic Tissue Paper Bundle Packing MachineMain Parts
Control panel unit

1. Control panel unit

Protects the touch screen for easy use and operation by the operator.

2. Servo motor

We use a reliable brand to ensure smooth operation at low and high speeds and accurate positional accuracy.
Servo motor
Swinging sealing part

3. Swinging sealing part

Strive to reduce the vibration when the swinging part stamping, ensure the stability of the swinging sealing part, improve the accuracy of the swinging sealing part , so as to improve the uniformity of side sealing, ensure the packaging effect.
TP-B35TE Series Automatic Tissue Paper Bundle Packing MachineRelated Quality Control
Parts Storage Management
Parts Storage Management
we use a efficient systems to help visualize the process, making the process of purchasing, checking, warehousing and using of raw materials efficient and transparent.
Supplier Management Team
Supplier Management Team
The goal of our supplier management team is to effectively monitor the timely and high-quality delivery of suppliers, improve process control, promote synergy and common progress between suppliers and the company.
Customer feedback
Customer feedback
We value customer feedback and use it to continuously improve the quality of machines. This includes incorporating customer suggestions and addressing any issues that arise.
Certification
Certification
Imako obtain certifications from independent organizations to ensure that their products meet industry standards and regulatory.
Manufacturer Advantage We have strong power to support our production, from factory environment construction to equipment
configuration, all leading to high quality products.
Innovation

Innovation

Imako are constantly innovating and developing new technologies to improve the performance and efficiency of TP-B35TE Series Automatic Tissue Paper Bundle Packing Machine. This commitment to innovation allows them to offer the latest and greatest advancements to their customers.
Customization

Customization

Imako are able to offer customized solutions to their customers, tailoring the TP-B35TE Series Automatic Tissue Paper Bundle Packing Machine to meet the specific needs and requirements of each business.
Quick Delivery

Quick Delivery

Shipment requires 20 days for stored machine and 60 days for customized product.
Good Quality

Good Quality

We have strict quality control processes in place to ensure that TP-B35TE Series Automatic Tissue Paper Bundle Packing Machine are of the highest quality. and passed CE, ISO 9001, etc.
TP-B35TE Series Automatic Tissue Paper Bundle Packing MachineRelated Services
Installation

1. Installation

We offer installation services to help customers set up TP-B35TE Series Automatic Tissue Paper Bundle Packing Machine in their facilities. This includes connecting the machine to power and other utilities, as well as ensuring that it is levelled and positioned correctly.

2. Remote diagnosis service overseas

Necessary, engineers are available to do machinery service overseas but buyer need to responsible for all the expenses. Usually equipment failure occurs, our after-sales service technician will contact you as soon as possible to solve the problem.
Remote diagnosis service overseas
Maintenance

3. Maintenance

We offer maintenance services to help customers keep TP-B35TE Series Automatic Tissue Paper Bundle Packing Machine in good working order. This includes regular cleaning and lubrication, as well as more extensive repairs as needed.
