TP-T450 Soft Tissue Paper 3D Shrink-Film Wrapping Packing Machine

Price: Negotiable
Model Number: TP-T450
Power: 12.42KW
Application: Facial Tissue,Napkin,V fold Hand Towel Paper
Weight: 3000KG
Output: Highspeeds
Packaging dimension: Diameter:≤500,Width:340
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

Features

The tissue paper packing machine is designed with several features that make it an idealchoice for packaging tissue paper products. Some of the key features include:

1. High-speed packaging: The tissue paper packing machine is designed to operate at highspeeds, making itpossible to pack a large number of tissue paper products in a short amountof time.
2. Automatic operation: The machine is designed to operate automatically, with minimal humanintervention required. This ensures that the packaging process is efficient, accurate, andconsistent.
3. User-friendlyinterface: The machine is designed with a user-friendly interface, making it easyto operate and maintain.
4. Durable construction: The machine is constructed using high-quality materials that ensure its durability and longevity.
5. Customizable: The tissue paper packing machine can be customized to meet the specificpackaging requirements of different tissue paper products.Uses

The tissue paper packing machine is designed to ensure efficient and accurate packaging oftissue paper products. The machine functions by:

1. Loading the tissue paper products onto the machine.
2. Wrapping the tissue paper products in film or paper.
3. Sealing the packaging using heat or adhesive.
4. Printing labels or branding information on the packaging

5. Dispatching the packaged tissue paper

TP-T450 main parameter configuration

Scope of application

Facial tissue, V fold wipes, napkins, Non-woven fabric, dust-free paper

Power supply

380V/50Hz

Feeding mode

ASF multi - stage intelligent feeding system

Total power (KW)

12.42

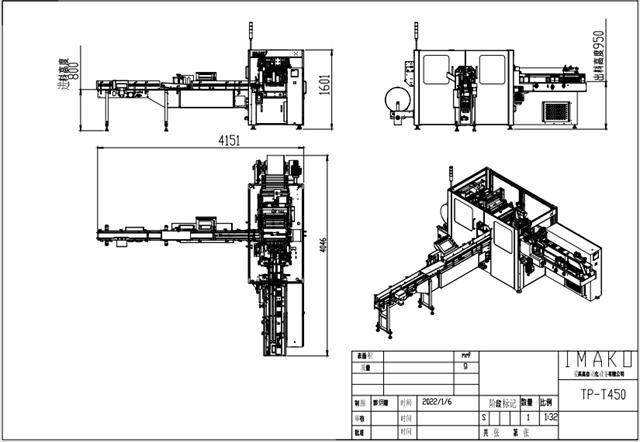

Machine size(mm)

L4150*W4046*H1600

Machine noise (dB)

≤85

Machine weigh(KG)

3000

Perforation option

Straight line /Oval shape form

Alternative

Film thickness (mm)

0.04-0.05

Packaging material

CPPPE&Complex film

Film roll Max. range(mm)

Diameter:≤500Width:340

Movement control mode

16 servo shafts

positioning control

Compressed air (mpa)

Air source≥0.5

Special configuration

Three shaping function unitsElectronic handwheel adjustment Unit (All units can operate independently)

★TP-T450 multi servo high spped Tissue Paper Packing Machine is suitable for automatically packing facial tissue paper, V fold wipes, napkins or similar Non-woven fabric, dust-free paper by plastic film three-dimensional wrapping.

★ This machine can run in high speed stably with low noise, it has the advantages of simple operation, wide range of packaging, quick specification conversion, convenient maintenance, low cost,etc.






The tissue paper packing machine is an advanced machine used for packaging purposes,particularly for packaging of tissue paper products such as facial tissues, toilet rolls, andpaper towels. The machine is designed to ensure the safe and secure packaging of tissuepaper products.


The tissue paper packing machine can be used for a wide range of applications in variousindustries, including:
1. Paper industry: The machine can be used for packaging tissue paper products in the paperindustry.
2. Food industry: The machine can be used for packaging paper towels and other tissue paperproducts used in the food industry.
3. Healthcare industry: The machine can be used for packaging facial tissues and toilet rollsused in the healthcare industry.
Functionality

★Standard functions: Electronic handwheel adjustment, tissue hook forming, bag shaping, slapping shaping; Automatic speed adjustment and paper towel incoming flow detection, paper towel height, length detection, alarm stop function; torque overload protection; The main push rod, board seeding and movable edge guide are equipped with cylinder overload protection function.

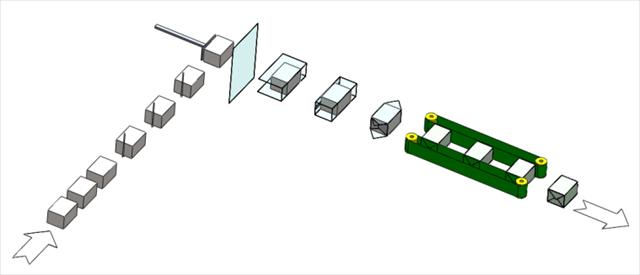

TP-T180流程图1 .png

TP-T450 Soft Tissue Paper 3D Shrink-Film Wrapping Packing MachineMain Parts

1. Base

The base of the robot is the foundation that supports the entire structure. It is usually made of steel or other durable materials to ensure stability and rigidity.

2. Sensors

The sensors are used to detect the presence and position of items on the pallet. They provide feedback to the control system to ensure that the arm and gripper are in the correct position to pick up or place items.

3. Best Electric motors

Factors such as the speed, torque, and power output needed to drive the various components are all taken into consideration when selecting the motor.Ensure that the motor is properly installed and maintained,Regular maintenance and inspection can help to prolong the life of the motor.
Related Cases Your Professional TP-T450 Soft Tissue Paper 3D Shrink-Film Wrapping Packing Machine Supplier in China.
we from factory environment construction to equipment configuration support our production, all leading to high quality products.
