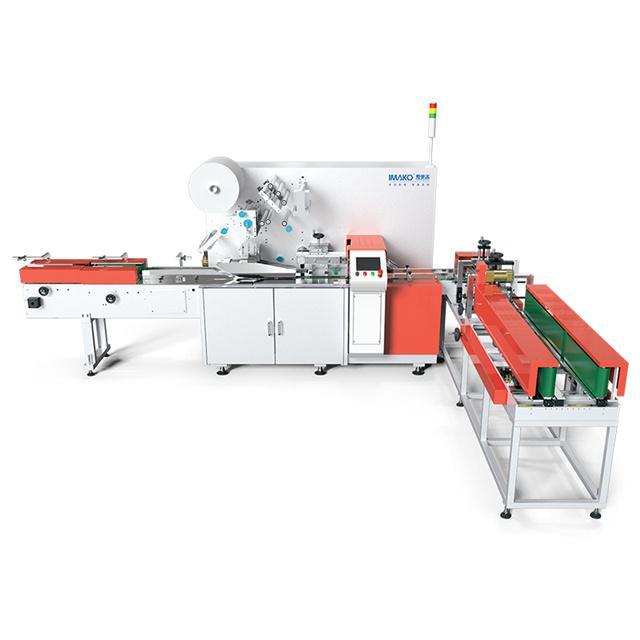

TP-B30RE Kitchen Roll Tissue Paper Packing Machinery Bunling Wrapping Machine

Price: Negotiable
Model Number: TP-B30RE
Power: 19KW
Application: bundle packing single packed/unpack core/coreless roll paper
Weight: 3400KG
Output: 22Pack/min
Packaging dimension: Length (L): 300-690 Width (W): 160-440 Height (H): 80-280 MM
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.


★Adopts servos control for tissue arrangement, counting, filling preparation, tissue fill to bag, bag catching, bag conveying. This machine is easy to operate and maintain.

★Adopts central vacuum management mode, can efficiency lower power consumption.

★Adopts intelligent sealing system, alternating current control, up & down independent temperature control, can meet different kinds of packaging materials, ensure nice sealing and stably running.

TP-B30RE main parameter configuration

Specification\Model\

ltem

TP-B30REV、TP-B30REM

Scope of Application

Core、coreless roll paper

Feeding type

ASF auto double lanes feeding system

Design speed

22 packs/min

Stable speed

20packs/min(relate to product size)

Gusset type

Vacuum forming mould

Cut off modo

lnsert & cut

Bag storage structure

Dual bag racks

Bag storage qty

600 bags

Bag material

PE film

Compressed air(MAP)

Pressure O.6MPA Flow 30l/min

Power supply

380V/50HZ

Total motor power(KW)

19

Machine weight (KG)

3400

Bag type

premade bag

Servo control shaft nos

10

Electrical control system

VEICHI,MITSUBISHI

Temp.system

YUDILAN

Pneumatic system

SMC.AlRTAC

Optional device

lnk code printer.thermos transfer printer

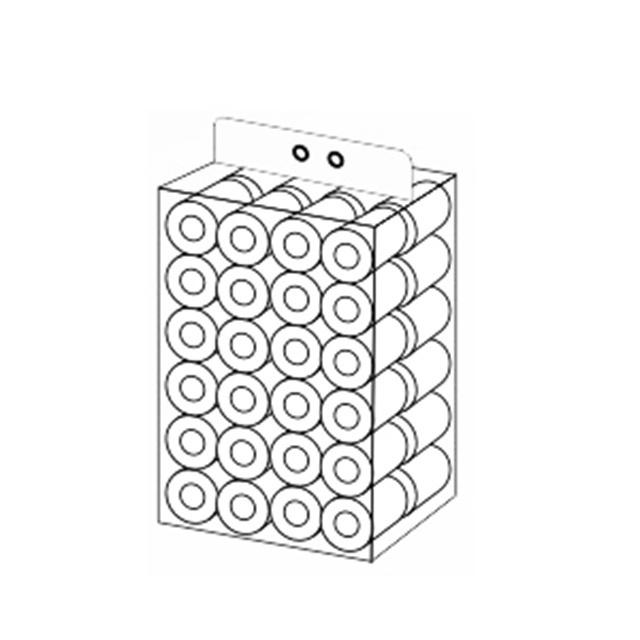

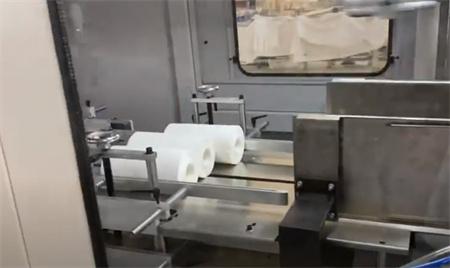

TP-B30RE series automatic roll paper bundle packing machine is suitable for automatic bundle packing single packed/unpack core/coreless roll paper.







Equipped with functions of waste bag free stop automatic rejection, air source management, fault alarm and display, servo overload protection.

TP-B30RE 4.jpg
TP-B30RE Kitchen Roll Tissue Paper Packing Machinery Bunling Wrapping MachineMain Parts

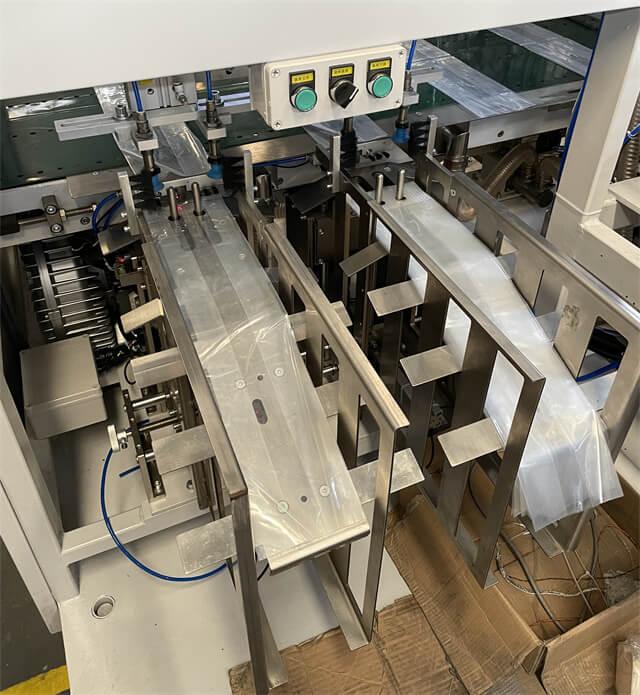

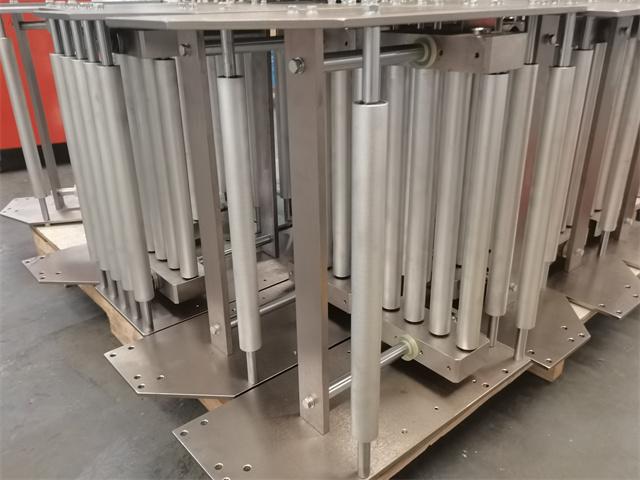

1. Bag rack part

Dual bag racks,can storage maximum 600 bags.

2. Film Dragging Roller

The Film Dragging Rollers are an important component of the Kitchen paper rolls packing machine. They are used to pull the film across the surface of the Kitchen pape r rolls and ensure that the film is tightly wrapped around the rolls.

3. The Film Frame

The Film Frame is also designed to be adjustable, which allows for different sizes and shapes of film to be used as needed. This is important for ensuring that the film fits snugly around Kitchen paper rolls and provides a secure and tamper-proof package.In addition to supporting the film, it also helps to ensure that the film is properly aligned with the rollers and other components of the machine.
TP-B30RE Kitchen Roll Tissue Paper Packing Machinery Bunling Wrapping MachineRelated Quality Control
Certification
Certification
Imako obtain certifications from independent organizations to ensure that their products meet industry standards and regulatory.
Supplier Management Team
Supplier Management Team
The goal of our supplier management team is to effectively monitor the timely and high-quality delivery of suppliers, improve process control, promote synergy and common progress between suppliers and the company.
Quality control checks
Quality control checks
We perform regular quality control checks to ensure that TP-B30RE Kitchen Roll Tissue Paper Packing Machinery Bunling Wrapping Machine meets the required standards. This includes testing for functionality, safety, and user experience.
Material inspection
Material inspection
Imako use high-quality materials to build TP-B30RE Kitchen Roll Tissue Paper Packing Machinery Bunling Wrapping Machine, and they inspect each component to ensure that it meets the required standards.
Manufacturer Advantage We have strong power to support our production, from factory environment construction to equipment
configuration, all leading to high quality products.
Professional Team

Professional Team

We have more than 12 years experiences in household paper production industry and build a professional team with 12 engineers.
Customization

Customization

Imako are able to offer customized solutions to their customers, tailoring the TP-B30RE Kitchen Roll Tissue Paper Packing Machinery Bunling Wrapping Machine to meet the specific needs and requirements of each business.
Innovation

Innovation

Imako are constantly innovating and developing new technologies to improve the performance and efficiency of TP-B30RE Kitchen Roll Tissue Paper Packing Machinery Bunling Wrapping Machine. This commitment to innovation allows them to offer the latest and greatest advancements to their customers.
Cost savings

Cost savings

By automating the paper towel packaging process, businesses can save time, labor costs, and materials. This can result in significant cost savings over time, allowing companies compete more effectively in the marketplace.
TP-B30RE Kitchen Roll Tissue Paper Packing Machinery Bunling Wrapping MachineRelated Services
One year warranty

1. One year warranty

All the machine has one year warranty.

2. Solutions providing services

Over the past 12 years, we have served more than 1000 factories worldwide. Our engineering team and sales team are experienced to provide you with the right solution.
Solutions providing services
Sample testing support

3. Sample testing support

We could help to test the machine using your sample, and send you the working video.
