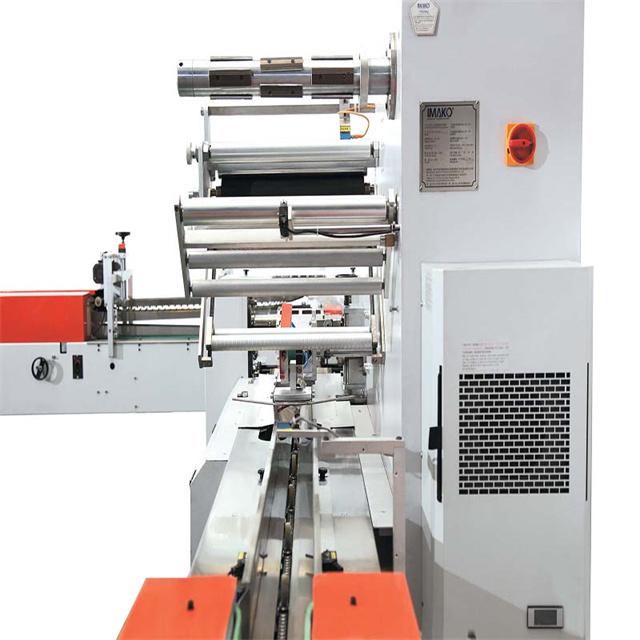

TP-R220 Kitchen Paper Towel Roll Packing Machine Packer

Price: Negotiable
Model Number: TP-R220
Power: 12KW

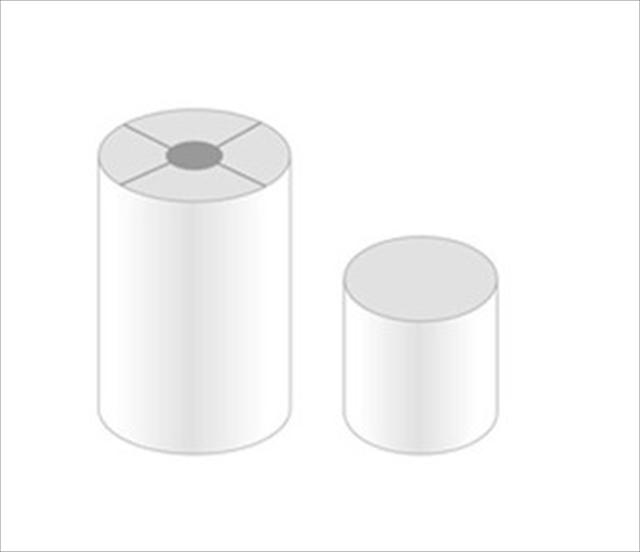

Application: auto packing core/coreless toilet paper or kitchen paper
Weight: 1800KG
Output: 200Pack/min
Packaging dimension: Length (L): 80-220 Diameter (D): 80-130 MM
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.




★Adopt servo control for paper arrangement, paper feeding, film conveying, film sealing, film cut off, paper direction changing. Has advantages of complete operation configuration, high efficiency, easy to operate, wide size range, quick sizes changing, convenient maintenance, low cost in using etc..

★Standard functions equipped: Inching function, line function, PLC temperature control function, diameter error detection and alarm function, length error detection and alarm function, auto seal open/close function, film stop feeding when no material function.

★Maximum stable packing speed of roll paper with core: 200 rolls/min

★Maximum stable packing speed of coreless roll paper: 150 rolls/min

★Can realize length changing from 80-220mm by setting on touch screen directly.


TP-R220 main parameter configuration

Design packing speed

220packs/min

Stable packing speed

≤200 pack/min

relate to product size

Maximum flm width(mm)

430

Cutter configuration

Double cutters

Film install structure

Air shaft

Machine weight(KG)

1800

Machine noise(db)

≤78dB

Percentage of pass

≥97%

Efficiency

≥85%

Power supply

380V/60Hz

Packaging film material

BOPP、Spp

Film thickness

0.018-0.03

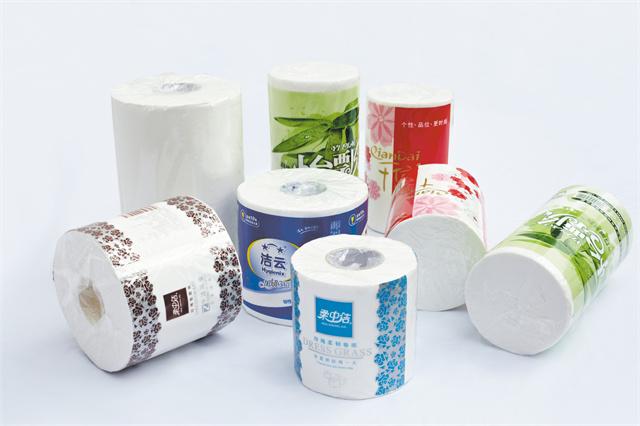

TP-R220 automatic single roll paper wrapping machine is suitable for auto packing core/coreless toilet paper or kitchen paper.





Link conveyor system, auto monitor in feed rolls flow, machine auto-stop for limited rolls, rolls auto arrange and feed function, auto stop for abnormal operation and no facial tissue condition, auto alarm and stop for no film, film cutting position electronic auto adjust function, auto-memory and keep parameters function,  main machine jog and separated action function, side-sealing part separated action function, whole machine linkage and emergency stop function, whole machine cycle stop and auto display defaults function.

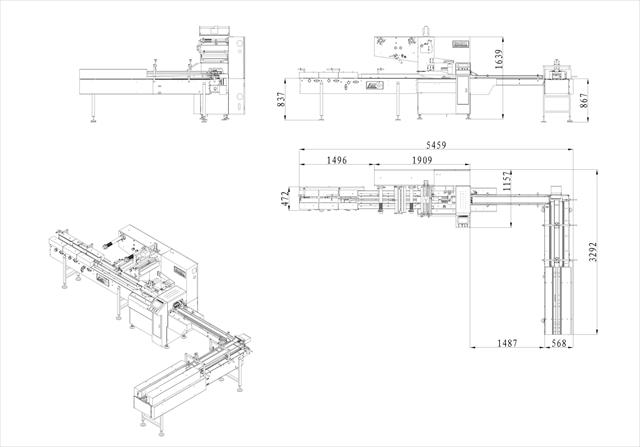

downLoadImg (1).png

packing procedure.png

TP-R220 Kitchen Paper Towel Roll Packing Machine PackerMain Parts

1. Sealing part

Up and down temperature individual controlling,suitable for different packaging materials.

2. The Film Frame

The Film Frame is also designed to be adjustable, which allows for different sizes and shapes of film to be used as needed. This is important for ensuring that the film fits snugly around Kitchen paper rolls and provides a secure and tamper-proof package.In addition to supporting the film, it also helps to ensure that the film is properly aligned with the rollers and other components of the machine.

3. Conveyor Timing Belts

The Belt is designed with specific dimensions and specifications that are tailored to the requirements of Kitchen paper roll packing machine.The belt is also designed with specific grooves and ribs that help to improve its grip on the rollers and ensure smooth and consistent movement.
TP-R220 Kitchen Paper Towel Roll Packing Machine PackerRelated Quality Control
Performance testing
Performance testing
We conduct rigorous performance testing on each machine to ensure that it meets the required specifications. This includes testing for speed, accuracy, and reliability.
Assembly
Assembly
Imako have strict assembly processes in place to ensure that each machine is built to the highest standards. This includes testing and inspection at each stage of the assembly process.
Parts Storage Management
Parts Storage Management
we use a efficient systems to help visualize the process, making the process of purchasing, checking, warehousing and using of raw materials efficient and transparent.
Certification
Certification
Imako obtain certifications from independent organizations to ensure that their products meet industry standards and regulatory.
Manufacturer Advantage We have strong power to support our production, from factory environment construction to equipment
configuration, all leading to high quality products.
Improved hygiene

Improved hygiene

TP-R220 Kitchen Paper Towel Roll Packing Machine Packer are designed to be clean and hygienic, reducing the risk of contamination and ensuring that products are packaged in a safe and sanitary manner.
Loyal Service

Loyal Service

The trust of our customers is our achievement. We cherish every customer and grow with them as partners.
Customization

Customization

Imako are able to offer customized solutions to their customers, tailoring the TP-R220 Kitchen Paper Towel Roll Packing Machine Packer to meet the specific needs and requirements of each business.
Increased productivity

Increased productivity

TP-R220 Kitchen Paper Towel Roll Packing Machine Packer are designed to be efficient and accurate, reducing the risk of errors and increasing the speed of the packaging process. This can lead to increased productivity and a more profitable business.
TP-R220 Kitchen Paper Towel Roll Packing Machine PackerRelated Services
One year warranty

1. One year warranty

All the machine has one year warranty.

2. Remote diagnosis service overseas

Necessary, engineers are available to do machinery service overseas but buyer need to responsible for all the expenses. Usually equipment failure occurs, our after-sales service technician will contact you as soon as possible to solve the problem.
Remote diagnosis service overseas
Technical support and training service

3. Technical support and training service

Imako provides user training service, lifetime technical support and telephone consultation, allowing users to foresee and avoid potential problems while ensuring all equipment we provided remain at optimal running status.

Related Certification
Imako TP-100S Tissue Packing Machine CE Certificate
Imako TP-T180M Automatic Tissue Packing Machine UDEM Certificate
Imako TP-T200M Automatic Tissue Wrapping Machine UDEM Certificate
Imako Automatic Packaging Machine SGS Certificate
Related FAQ
1.How do I choose the right tissue wrapping machine for my business?
When choosing a tissue wrapping machine, it's important to consider factors such as the size and volume of your business, the type of paper towels you use, and your budget. You should also consider the level of automation you require and the amount of space you have available for the machine.
2.How much does a paper towel packing machine cost?
The cost of a paper towel packing machine can vary widely, depending on the type and size of the machine, as well as any additional features or accessories. On average, you can expect to pay anywhere from a few hundred to several thousand dollars for a paper towel packaging machine.
3.What are the benefits of using packaging machine?
Using TP-R220 Kitchen Paper Towel Roll Packing Machine Packer has several benefits, including increased efficiency, improved accuracy, and reduced labor costs. It also helps to ensure consistent packaging and a cleaner, more hygienic work environment.
4.What are the components of packaging machine?
The components of TP-R220 Kitchen Paper Towel Roll Packing Machine Packer typically include rolls of tissue paper, a product conveyor, a taping mechanism, a wrapping mechanism, and an output conveyor.
5.What technical support can I get during the transaction?
We offer online technical support at any time you want.Instructional videos, the way of daily commissioning and maintenance also wil be provided. If you need installation service, our technicians can go abroad but this is not free. During warranty you could replace the failed parts for free.
6.Are you manufacturer or trading company?
We are manufacture of automatic household paper packing machine, supports new product design, research development, component procurement, manufacturing assembly, sales promotion, andafter-sales technical services, and can provide comprehensive solutions for the complete product supply chain.
