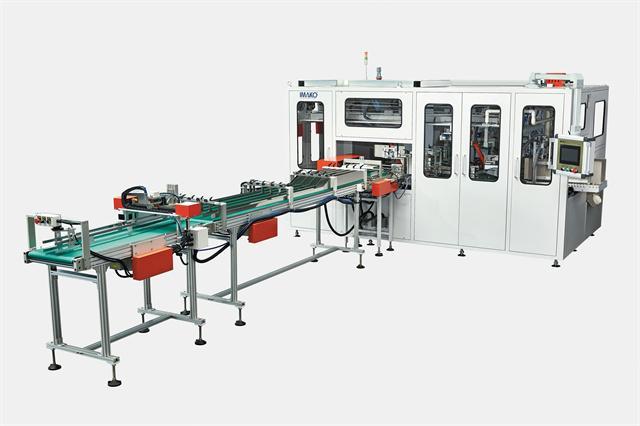

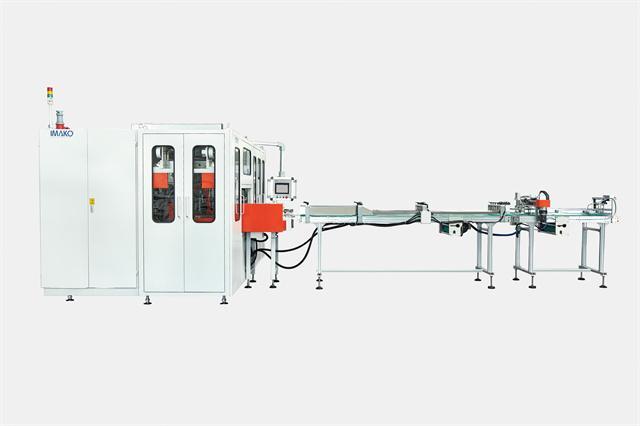

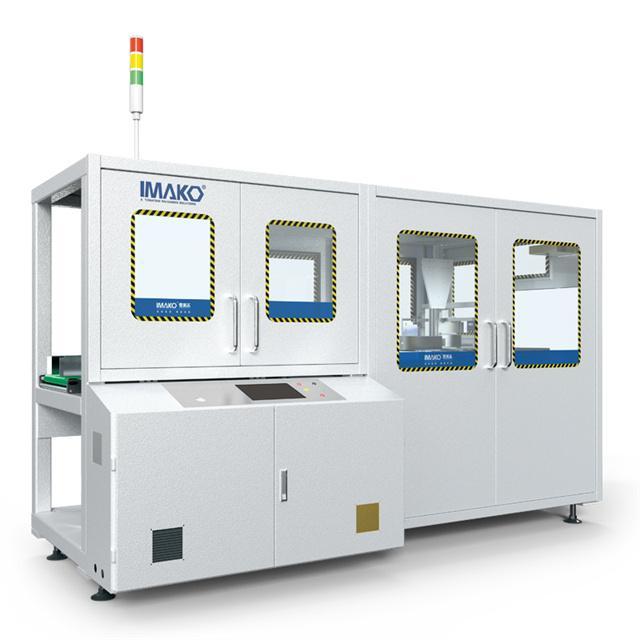

TP-B30T Facial Tissue Bundler Towel Paper Packing Machine

Brand Name: IMAKO
Price: Negotiable
Model Number: TP-B30T
Power: 18KW

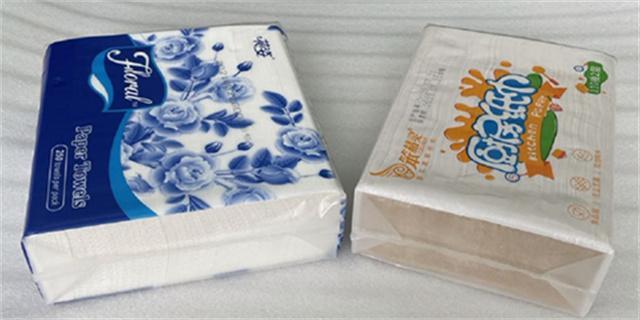

Application: folded facial tissues, paper napkins and paper hand towels
Weight: 1800kg
Output: 21 bundles/min
Packaging dimension: L(180-500)×W(120-420)×H(85-100)mm
Place of Origin: CHINA.
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote


★ The paper towel arrangement, counting, feeding, filling, pulling and other action unit are servo drive control. It is simple to operate and convenient for maintenance.

TP-B30T main parameter configuration

Scope of application

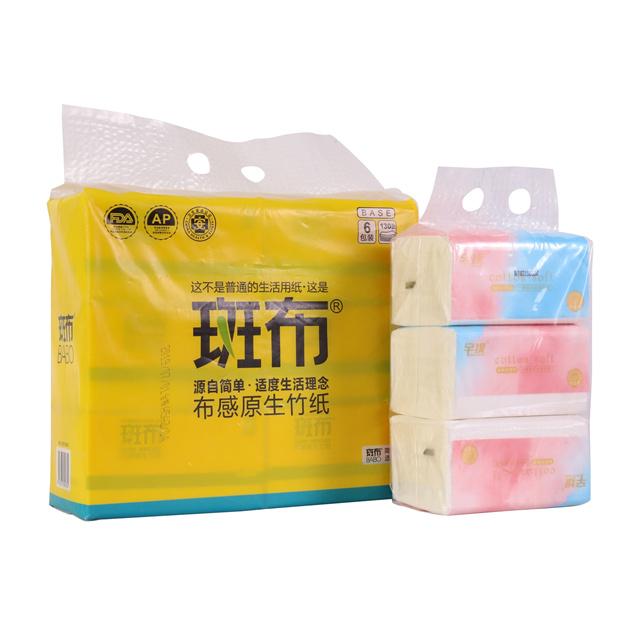

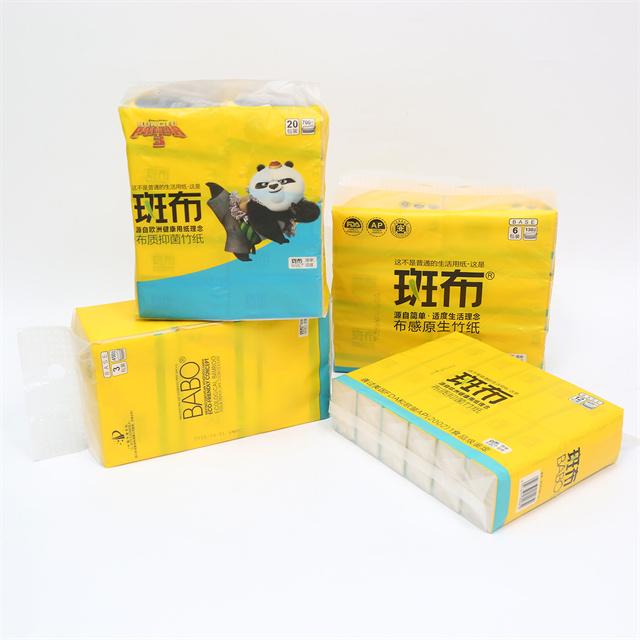

Single pack facial tissue

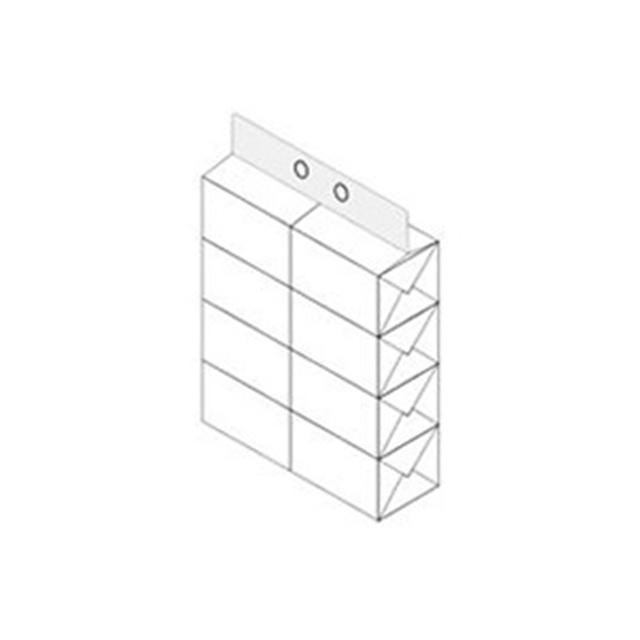

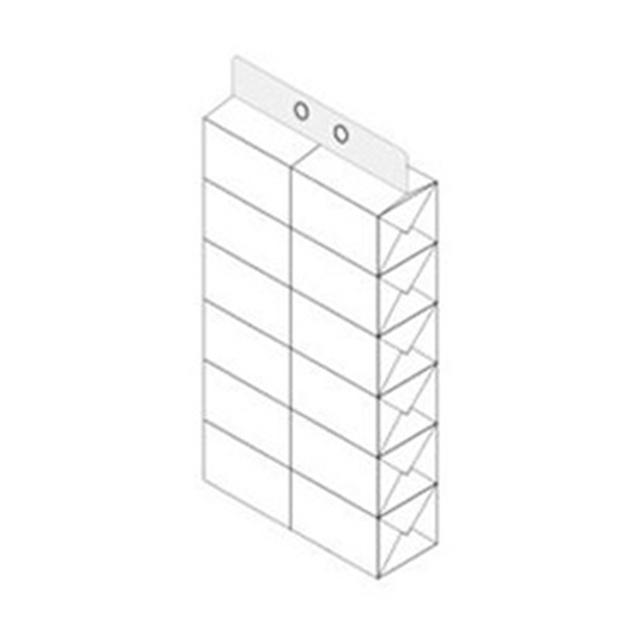

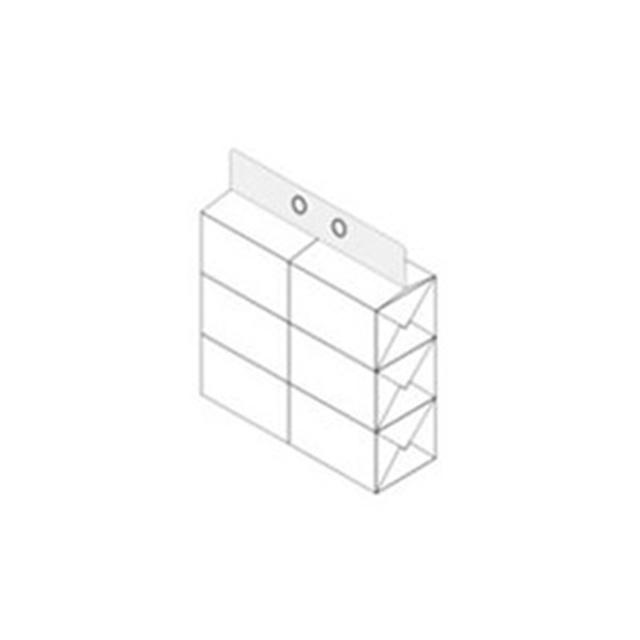

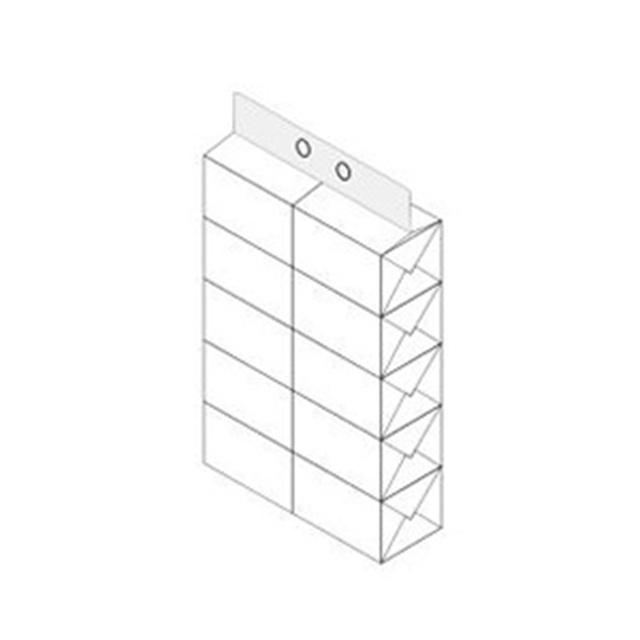

Packing style

1x3、1x4、1x5、1x6

2x3、2x4、2x5、2x6

3x3、3x4、3x5、3x6

Bag install mode

Dual bag racks

Bag storage quantity

≤ 300/bags

Machine weight (KG)

1800

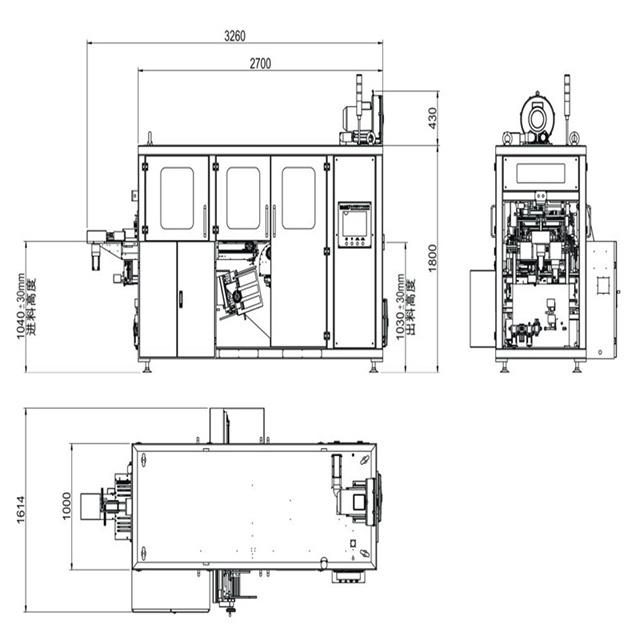

Machine size

L3355 *W1580 *H1738

Bag type

CPP、PE

Compressed air (mpa)

Air source0.6 Air flow≥300L / min

Power supply

308V / 50HZ

Sealing mode

Heating tube heating to seal

Gusset forming mode

Vacuum mold forming







★TP-B30T automatic tissue bundle packing machine is suitable for auto bundle packing single soft pack facial tissue.










Equipped with bag opening detection protection function, air source management function, fault alarm display function, servo overload protection function.

Double column packaging, specification conversion, One click for size changing. It has the advantage of easy operation, high efficiency.

TP-B20T 6.jpg
TP-B30T Facial Tissue Bundler Towel Paper Packing MachineMain Parts
Conveying line

1. Conveying line

The Frequency conversion motor drives the conveyor belt to feed material, with photoelectric eye automatic counting function, cam-controlled push and pallet mechanism, automatic feeding blocking protection function, automatic alarm function.

2. Feeding conveyor

Simple and reliable structure, reasonable transmission design.
Feeding conveyor
Servo motor

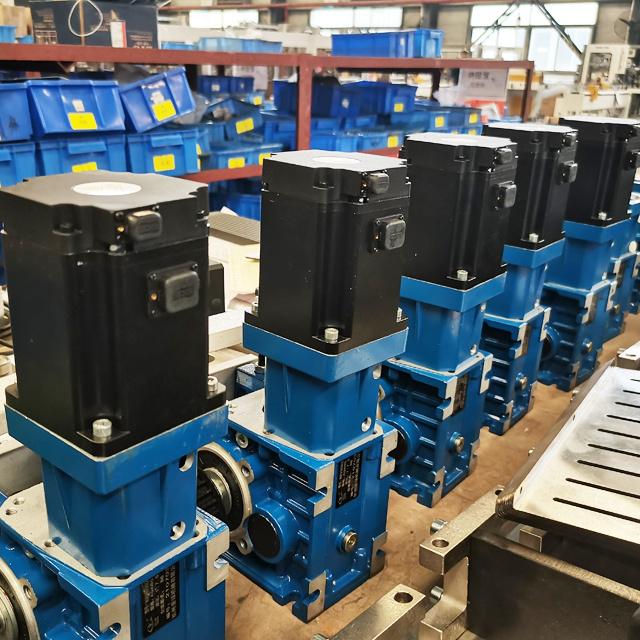

3. Servo motor

We use a reliable brand to ensure smooth operation at low and high speeds and accurate positional accuracy.
TP-B30T Facial Tissue Bundler Towel Paper Packing MachineRelated Quality Control

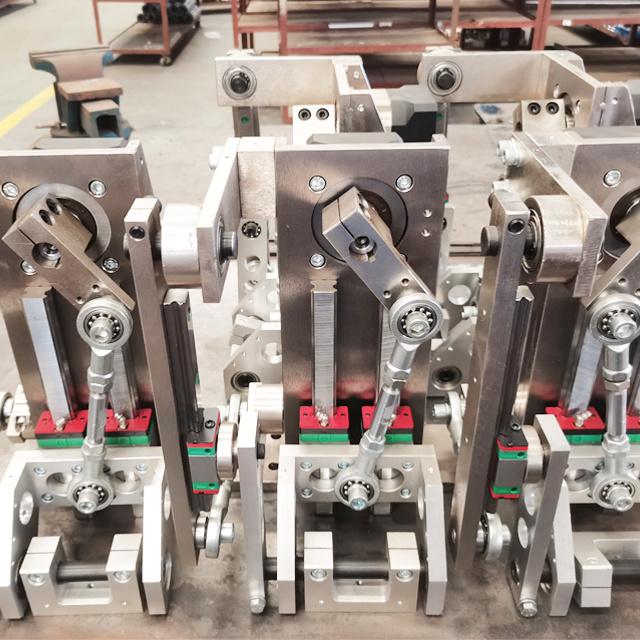

Assembly

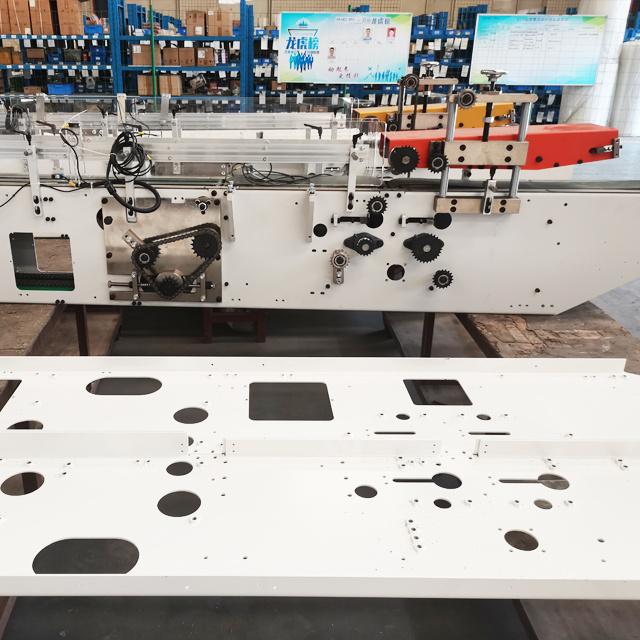

Assembly
Imako have strict assembly processes in place to ensure that each machine is built to the highest standards. This includes testing and inspection at each stage of the assembly process.
Quality control checks
Quality control checks

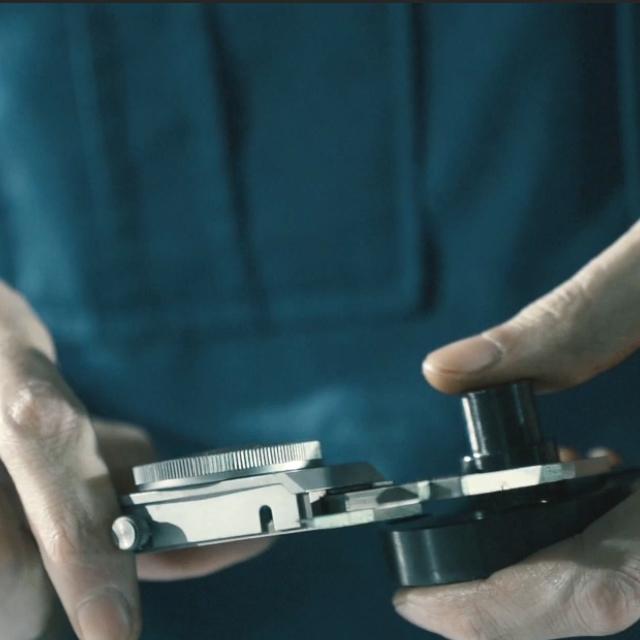

We perform regular quality control checks to ensure that TP-B30T Facial Tissue Bundler Towel Paper Packing Machine meets the required standards. This includes testing for functionality, safety, and user experience.
Debugging and Testing
Debugging and Testing
After the completion of the machine, it needs to be debugged and tested to ensure that the performance of the equipment meets the requirements and operates normally before it can be packaged and distributed, and then leave the factory.
Design and engineering
Design and engineering
Imako have a team of experienced engineers and designers who use the latest 3D modeling software to design and test the TP-B30T Facial Tissue Bundler Towel Paper Packing Machine before they are built.

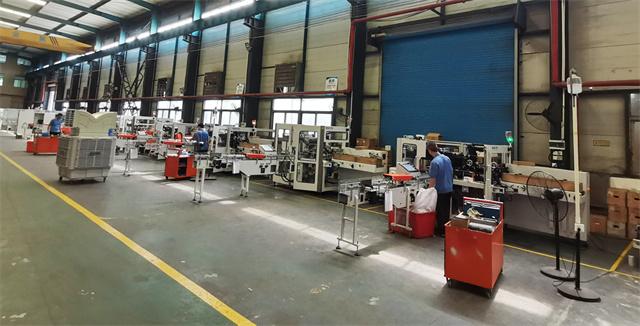

Manufacturer Advantage We have strong power to support our production, from factory environment construction to equipment
configuration, all leading to high quality products.
Expertise

Expertise

Imako have a deep understanding of the industry and the specific needs of their customers. This expertise allows them to design and build high-quality TP-B30T Facial Tissue Bundler Towel Paper Packing Machine that are tailored to meet the unique requirements of each customer.
Increased productivity

Increased productivity

TP-B30T Facial Tissue Bundler Towel Paper Packing Machine are designed to be efficient and accurate, reducing the risk of errors and increasing the speed of the packaging process. This can lead to increased productivity and a more profitable business.
Professional Team

Professional Team

We have more than 12 years experiences in household paper production industry and build a professional team with 12 engineers.
Efficient Reaction

Efficient Reaction

24 hours online service is hard but our team loves to help our customers solve problems, that what we try to do.
