Tissue Multi-pack packing machine
< >

TP-B20TA Automatic Multi-pack Tissue Paper Packing Machine

Brand Name: IMAKO
Price: Negotiable
Model Number: TP-B20T
Power: 12.42KW
Application: bundle packing soft pack facial tissue and napkin
Weight: 1800kg
Output: 18Pack/min

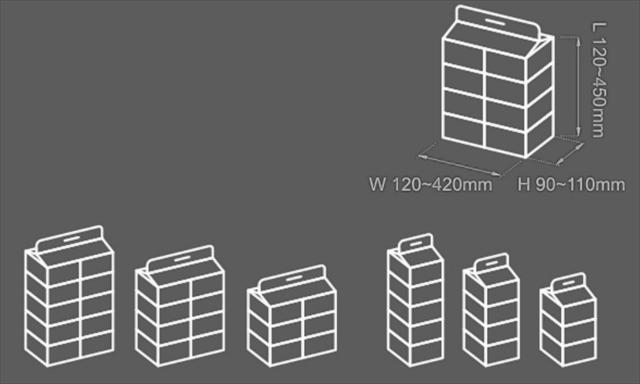

Packaging dimension: Length (L): 180-450 Width (W): 120-420 Height (H): 90-100 MM
Place of Origin: CHINA.
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote
+8615918973337
+8613433335585


★Adopts servos control for tissue arrangement, counting, tissue pushing, tissue forwarding, bag opening, tissue fill into bag. This machine is easy to operate and maintain

★Adopts central vacuum management mode, can efficiency lower power consumption.

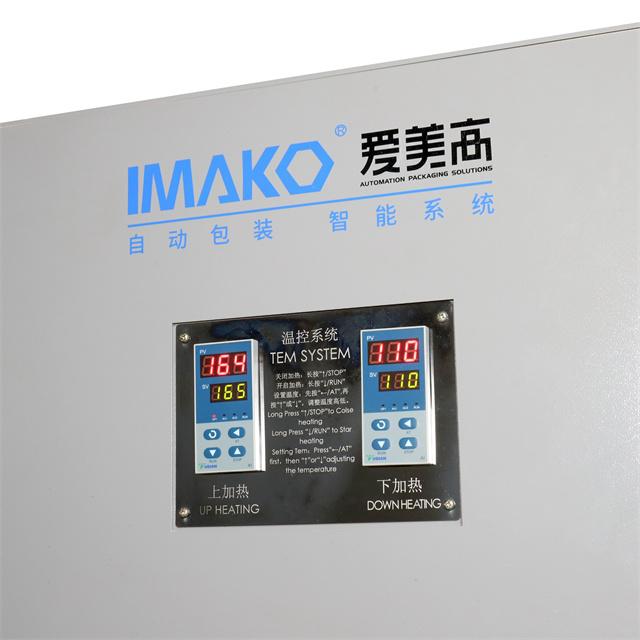

★Adopts intelligent sealing system, alternating current control, up & down independent temperature control, can meet different kinds of packaging materials, ensure nice sealing and stably running.

TP-B20T main parameter configuration

Machine weight(KG)

1800

Specification\Model

\item

TP-B20T

Bag material

CPPPE film (Thickness 0.05mm)

Scope of application

Single film pack soft

drawn facial tissue

Bundle packing

Compressed air

Pressure≥0.6

Air flow.≥30Lmin

(Buyer prepare)

Packing style

1x3,1x4,1x5,1x6

2x3,2x4,2x5,2x6

33,3x4,3x5,3x6

One click to realize

size change over

Power supply

308V/50Hz

Movement control mode

7 shafts servo positioning control

Design speed

20bags/min

Main transmission mode

Servo control shaft nos

Stable speed

≤18bags/min

Relate to product size

Machine color and craft

Deep grey, static spray paint craft

Packaging material

install structure

Dual bag racks

Packing style

Same to manual packing style

Bag storage quantity

≤400 bags

Gusset mode

Vacuum mould forming

Single pack

tissue size(mm)

L120-210 /W90-110/H30-100

Optional device

Film tube device

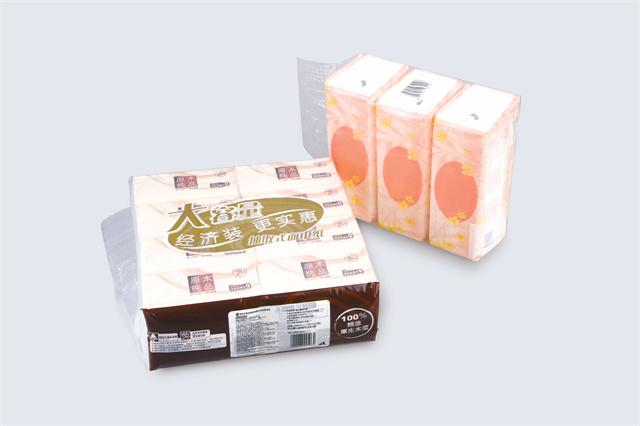

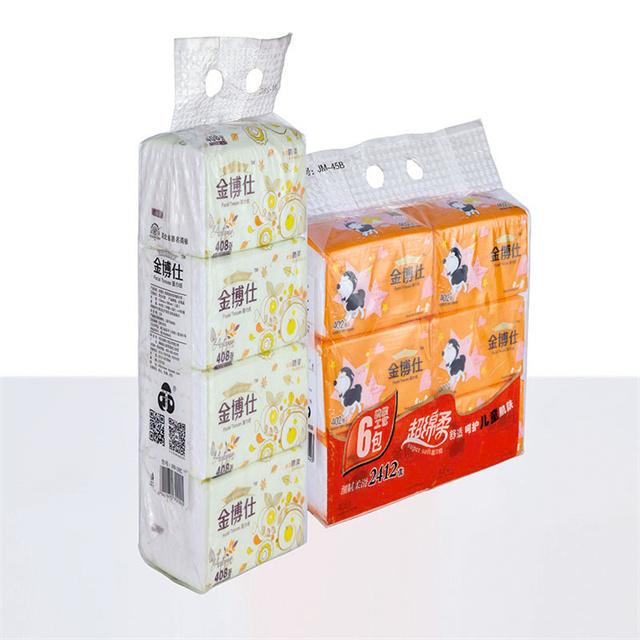

TP-B20T automatic tissue bundle packing machine is suitable for bundle packing soft pack facial tissue and napkin.








Equipped with functions of bag open protection, air source management, fault alarm and display, servo overload protection.



TP-B20T 6.jpg


Products Categories

Related Products

More》
Tissue paper packing machineTissue Multi-pack packing machineTissue bundle packing machine
TP-B20TA Automatic Multi-pack Tissue Paper Packing MachineMain Parts

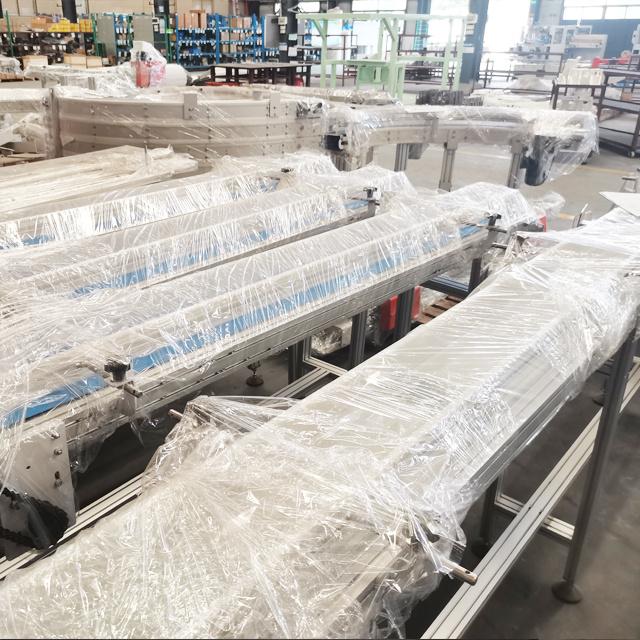

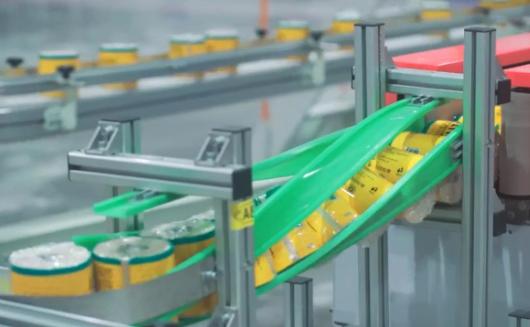

Conveying line

1. Conveying line

The Frequency conversion motor drives the conveyor belt to feed material, with photoelectric eye automatic counting function, cam-controlled push and pallet mechanism, automatic feeding blocking protection function, automatic alarm function.

2. Feeding conveyor

Simple and reliable structure, reasonable transmission design.
Feeding conveyor
Control panel unit

3. Control panel unit

Protects the touch screen for easy use and operation by the operator.
TP-B20TA Automatic Multi-pack Tissue Paper Packing MachineRelated Quality Control
Assembly
Assembly
Imako have strict assembly processes in place to ensure that each machine is built to the highest standards. This includes testing and inspection at each stage of the assembly process.
Debugging and Testing
Debugging and Testing
After the completion of the machine, it needs to be debugged and tested to ensure that the performance of the equipment meets the requirements and operates normally before it can be packaged and distributed, and then leave the factory.
Performance testing
Performance testing
We conduct rigorous performance testing on each machine to ensure that it meets the required specifications. This includes testing for speed, accuracy, and reliability.
Quality control checks
Quality control checks
We perform regular quality control checks to ensure that TP-B20TA Automatic Multi-pack Tissue Paper Packing Machine meets the required standards. This includes testing for functionality, safety, and user experience.
Manufacturer Advantage We have strong power to support our production, from factory environment construction to equipment
configuration, all leading to high quality products.
Quick Delivery

Quick Delivery

Shipment requires 20 days for stored machine and 60 days for customized product.
Expertise

Expertise

Imako have a deep understanding of the industry and the specific needs of their customers. This expertise allows them to design and build high-quality TP-B20TA Automatic Multi-pack Tissue Paper Packing Machine that are tailored to meet the unique requirements of each customer.
Innovation

Innovation

Imako are constantly innovating and developing new technologies to improve the performance and efficiency of TP-B20TA Automatic Multi-pack Tissue Paper Packing Machine. This commitment to innovation allows them to offer the latest and greatest advancements to their customers.
Improved hygiene

Improved hygiene

TP-B20TA Automatic Multi-pack Tissue Paper Packing Machine are designed to be clean and hygienic, reducing the risk of contamination and ensuring that products are packaged in a safe and sanitary manner.
TP-B20TA Automatic Multi-pack Tissue Paper Packing MachineRelated Services
Spare parts are in sufficient stock

1. Spare parts are in sufficient stock

Our sufficient inventory of spare parts is available to guarantee that every single part purchased by customer can delivered on time.

2. Maintenance

We offer maintenance services to help customers keep TP-B20TA Automatic Multi-pack Tissue Paper Packing Machine in good working order. This includes regular cleaning and lubrication, as well as more extensive repairs as needed.
Maintenance
To visit the factory

3. To visit the factory

Welcome to contact us to book a factory tour!
