Price: Negotiable
Model Number: FA-P55
Power: 12KW
Application: sanitary, pad and wet wipe
Weight: 2500KG
Output: 60 packs/min

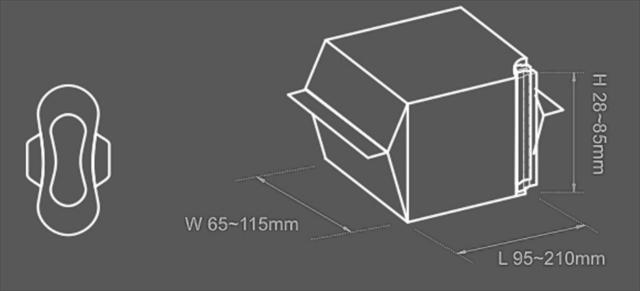

Packaging dimension: Length (L): 95-210 Width (W): 65-115 Height (H): 28-85 MM
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.
Adopts inverter to control film roll placing. Adopts servos for film pulling & positioning, mold positioning, mold move and lift up, seal, fill into bag, bag open etc. Has advantages of complete operation configuration, high efficiency, easy to operate, wide size range, quick sizes changing, convenient maintenance, low cost in using etc..
|
FA-P55 main parameter configuration |
|||
|
Specification/Model/ ltem |
FA-P55 |
||
|
Scope of application |
Manually put material(can connect with palletizer) |
||
|
Design speed |
60 packs/min |
Relate to product size |
|
|
Stable speed |
≥55 packs/min |
||
|
Size mould |
3 sets |
Standard configuration, sizes provide by buyer |
|
|
Machine weight(KG) |
≤2500 |
||
|
Packaging material |
PE,CPP,OPP lamination film |
||
|
Film thickness(mm) |
0.04-0.08 |
||
|
Maximum film diameter(mm) |
600 |
||
|
Maximum film width(mm) |
110 |
||
|
Fimcore diameter(mm) |
76 |
According to national standard |
|
|
Compressed air(WAP) |
Air compression ≥0.5 |
Buyer prepare |
|
|
Power supplier |
380V/50HZ |
According to national standard |
|
|
Suit vollage fluctuate |
+/-10% |
According to national standard |
|
|
I/O input (VDC) |
24 |
Electrical control circle input |
|
|
I/O output (VDC) |
24 |
Electrical control circle output |
|
|
Machine movement control mode |
3 shafts servo shaft posiioning oontral |
Electric cam movement curve |
|
|
Machine main transmission mode |
20 crmnti mechanical Cam+ electric Cam transmission |
||
|
Machine color and craft |
Oyster grey,static spray plant craft |
||

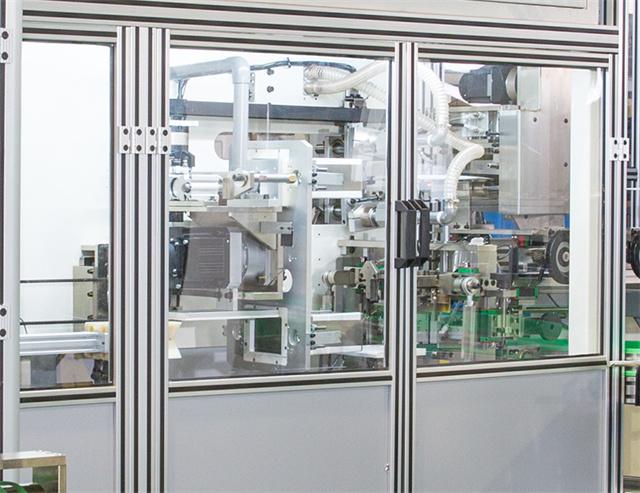

FA-P55 automatic sanitary napkin packing machine is suitable for automatically packing sanitary, pad and wet wipe.
This machine has functions of sealing time constant, double material auto alarm and stop, film roll detection, inching, link operation.
Adopts inverter to control film roll placing. Adopts servos for film pulling positioning, mold positioning, mold move and lift up, seal, fill into bag, bag open etc. Has advantages of ...
