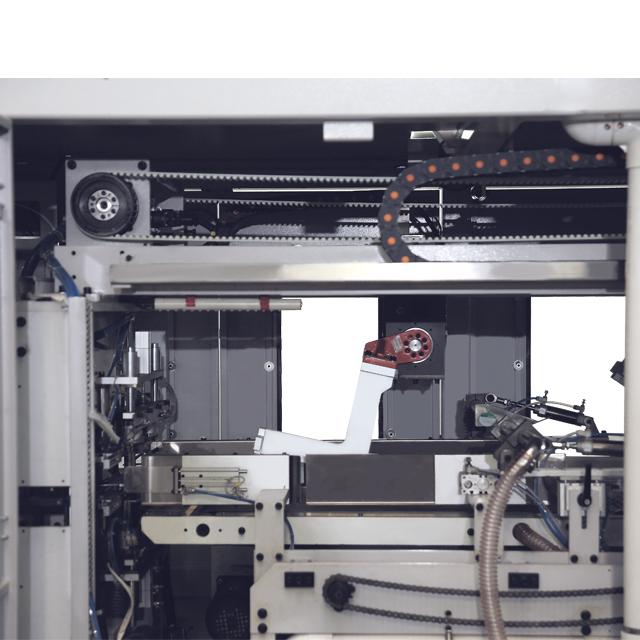

DP-B30D Semi-Automatic Diaper Bag Packing Wrapping Machine

Price: Negotiable
Model Number: DP-B30D
Power: 380V/50HZ
Application: conveying and sealing diaper filled in bags
Weight: 2000kg
Output: 30 Packages/Min

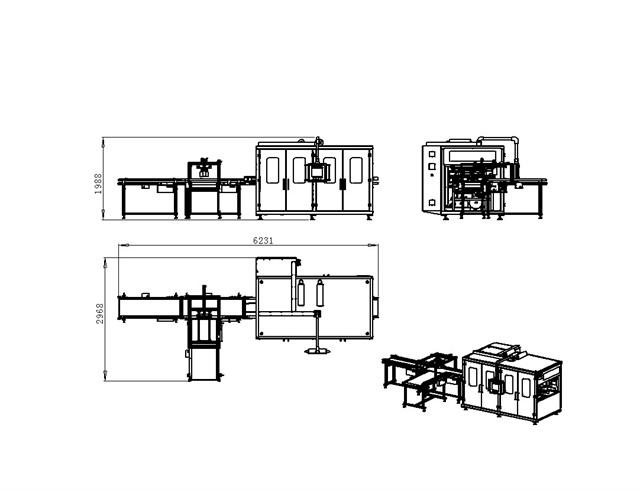

Packaging dimension: Length (200~600)/Width (140~400)/Height (100~ 200)MM
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.


★Adopts PLC cooperate with sensor to control diaper feeding and array. Use servo to control bag filling and sealing. Has advantages of complete operation configuration, high efficiency, easy to operate, wide size range, quick sizes changing, convenient maintenance, low cost in using etc..

DP-B30D main parameter configuration

Packing speed

15-30 (packs/min)

Maximum stable speed

30 (packs/min)

Machine weight(KG)

2000kg

Machine noise(db)

≤78db

Percent of pass

≥97%

Power supply

380V/50HZ

Bag material

PE/ aluminized film/ lamination film etc

Compressed air(MPA)

0.4-0.6

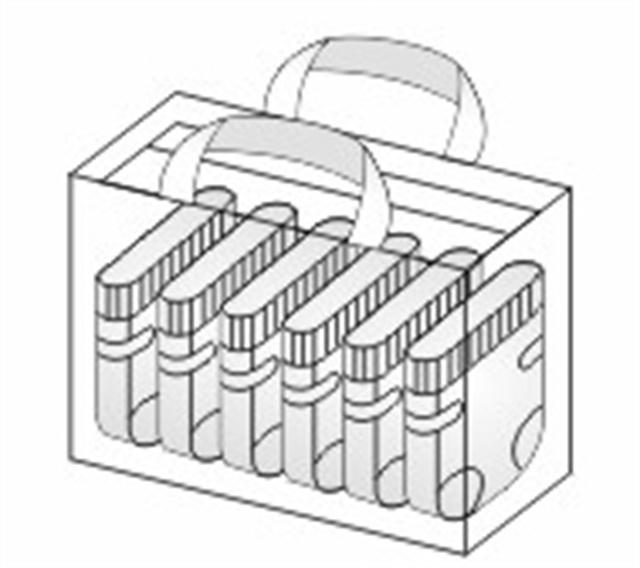

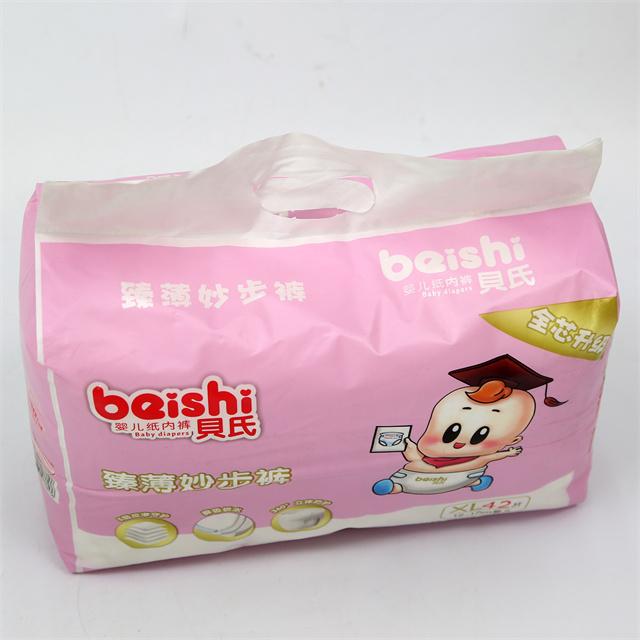

DP-B30D diaper packing machine is suitable for conveying and sealing diaper filled in bags.






Adopts PLC cooperate with sensor to control diaper feeding and array. Use servo to control bag filling and sealing.

DP-B30D Semi-Automatic Diaper Bag Packing Wrapping MachineMain Parts
Sealing parts

1. Sealing parts

Sealing parts are responsible for creating an airtight or watertight seal around the packaged diapers. These parts are crucial in ensuring that the diapers remain fresh and free from contamination during storage and transportation.

2. Pushboard

The pushboard in a diaper packaging machine is a critical component that helps to control the movement of the filled diaper bags as they move through the packaging process. The pushboard is typically mounted on the front of the machine, and is designed to guide the bags into position as they are sealed and cut.
Pushboard
Bag making machine suction cups

3. Bag making machine suction cups

The suction cups used in a bag making machine for a diaper packaging machine are an important component that helps to hold the filled diaper bags in place as they are being sealed and cut. it create a vacuum around the bags, which helps to maintain the shape and position of the bags during the packaging process.
DP-B30D Semi-Automatic Diaper Bag Packing Wrapping MachineRelated Quality Control
Design and engineering
Design and engineering
Imako have a team of experienced engineers and designers who use the latest 3D modeling software to design and test the DP-B30D Semi-Automatic Diaper Bag Packing Wrapping Machine before they are built.
BOM Check
BOM Check
During our production process, operators will check the bill of materials to find and test the right parts. Ensure the structure and function of DP-B30D Semi-Automatic Diaper Bag Packing Wrapping Machine meet the requirements.
Customer feedback
Customer feedback
We value customer feedback and use it to continuously improve the quality of machines. This includes incorporating customer suggestions and addressing any issues that arise.
Supplier Management Team
Supplier Management Team
The goal of our supplier management team is to effectively monitor the timely and high-quality delivery of suppliers, improve process control, promote synergy and common progress between suppliers and the company.
Manufacturer Advantage We have strong power to support our production, from factory environment construction to equipment
configuration, all leading to high quality products.
Cost savings

Cost savings

By automating the paper towel packaging process, businesses can save time, labor costs, and materials. This can result in significant cost savings over time, allowing companies compete more effectively in the marketplace.
Expertise

Expertise

Imako have a deep understanding of the industry and the specific needs of their customers. This expertise allows them to design and build high-quality DP-B30D Semi-Automatic Diaper Bag Packing Wrapping Machine that are tailored to meet the unique requirements of each customer.
Increased productivity

Increased productivity

DP-B30D Semi-Automatic Diaper Bag Packing Wrapping Machine are designed to be efficient and accurate, reducing the risk of errors and increasing the speed of the packaging process. This can lead to increased productivity and a more profitable business.
Customization

Customization

Imako are able to offer customized solutions to their customers, tailoring the DP-B30D Semi-Automatic Diaper Bag Packing Wrapping Machine to meet the specific needs and requirements of each business.
DP-B30D Semi-Automatic Diaper Bag Packing Wrapping MachineRelated Services
Maintenance

1. Maintenance

We offer maintenance services to help customers keep DP-B30D Semi-Automatic Diaper Bag Packing Wrapping Machine in good working order. This includes regular cleaning and lubrication, as well as more extensive repairs as needed.

2. Remote diagnosis service overseas

Necessary, engineers are available to do machinery service overseas but buyer need to responsible for all the expenses. Usually equipment failure occurs, our after-sales service technician will contact you as soon as possible to solve the problem.
Remote diagnosis service overseas
Technical support and training service

3. Technical support and training service

Imako provides user training service, lifetime technical support and telephone consultation, allowing users to foresee and avoid potential problems while ensuring all equipment we provided remain at optimal running status.

Related Certification
Imako TP-100S Tissue Packing Machine CE Certificate
Imako TP-T180M Automatic Tissue Packing Machine UDEM Certificate
Imako TP-T200M Automatic Tissue Wrapping Machine UDEM Certificate
Imako Automatic Packaging Machine SGS Certificate
Related FAQ
1.Are you manufacturer or trading company?
We are manufacture of automatic household paper packing machine, supports new product design, research development, component procurement, manufacturing assembly, sales promotion, andafter-sales technical services, and can provide comprehensive solutions for the complete product supply chain.
2.What types of items can be wrapped in a Toilet Paper packing machine?
Toilet Paper packing machines can be used to wrap a wide range of items, including facial tissues, bath tissues, wipes, and other hygiene products.
3.How much does a paper towel packing machine cost?
The cost of a paper towel packing machine can vary widely, depending on the type and size of the machine, as well as any additional features or accessories. On average, you can expect to pay anywhere from a few hundred to several thousand dollars for a paper towel packaging machine.
4.What are the components of packaging machine?
The components of DP-B30D Semi-Automatic Diaper Bag Packing Wrapping Machine typically include rolls of tissue paper, a product conveyor, a taping mechanism, a wrapping mechanism, and an output conveyor.
5.How to Guarantee transaction security?
Before delivery, we will send the pictures and videos to you to check the quality. Or you could arrange checking on your own. Also license and certificate could be provided for checking.
6.What technical support can I get during the transaction?
We offer online technical support at any time you want.Instructional videos, the way of daily commissioning and maintenance also wil be provided. If you need installation service, our technicians can go abroad but this is not free. During warranty you could replace the failed parts for free.
